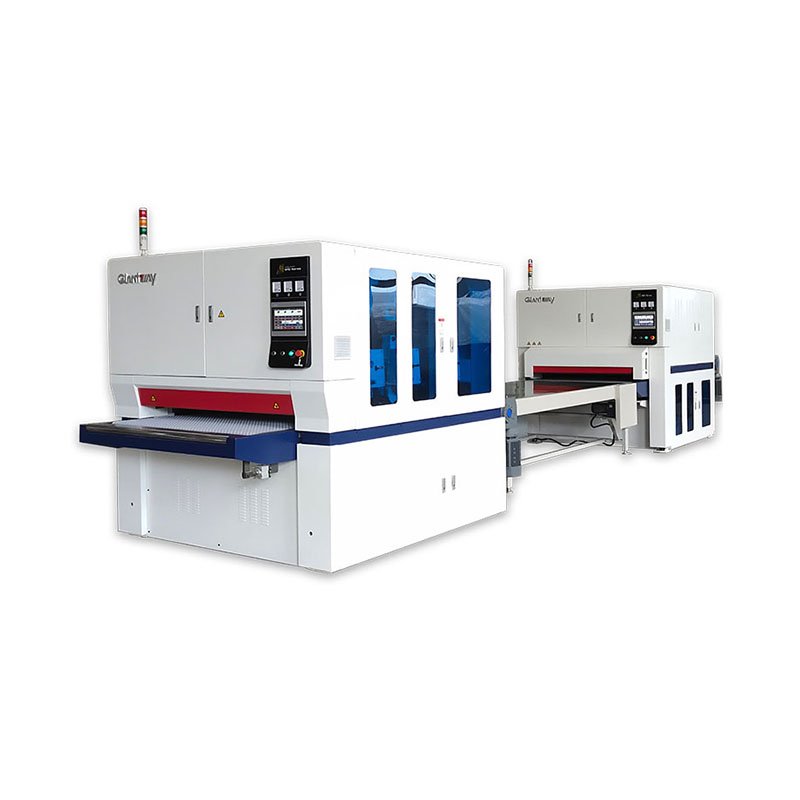

SDG series wide belt sander is our bottom sander, usually used in line together with top sander. This machine is a necessary equipment for high productivity facotries, such as wood doors manufacturers, cabinets makers and so on.

414
278
282
280
281
283

Features

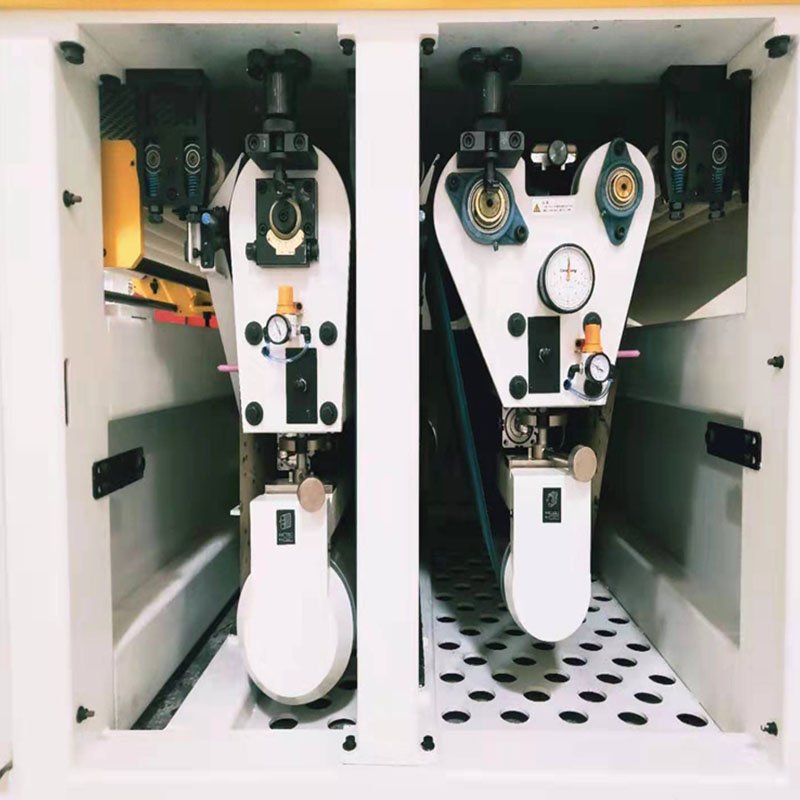

On this machine SDG1300R-RPA, the 1st working unit is a steel roller; the 2nd working unit is a rubber roller combined with a longitudinal pressure beam. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness  can be made according to customers' requirement.


This machine  main advantage is high cost performance ( good quality and affordable price), the machine is easy to adjust and maintain, our purpose is save your time and labor cost.

Specifications

MODEL

SPC

ITEM

SDG1300R-RPA

Working width

40-1300mm

Working thickness

5-140mm

Constant passline height

900mm

Minimum working length

515mm

First roller diameter (steel)

240mm

Second roller diameter (rubber)

210mm/55°

Sanding grit

#80, #180

Feeding speed

0-19m/min

First belt speed

 24m/s

Second belt speed

 18m/s

Sanding belt size

1330*1950mm

Feeding belt size

1300*3970mm

Total power

68.49kw

First belt motor

37kw-4P

Second belt motor

22kw-4P

Motors position

Inside the machine

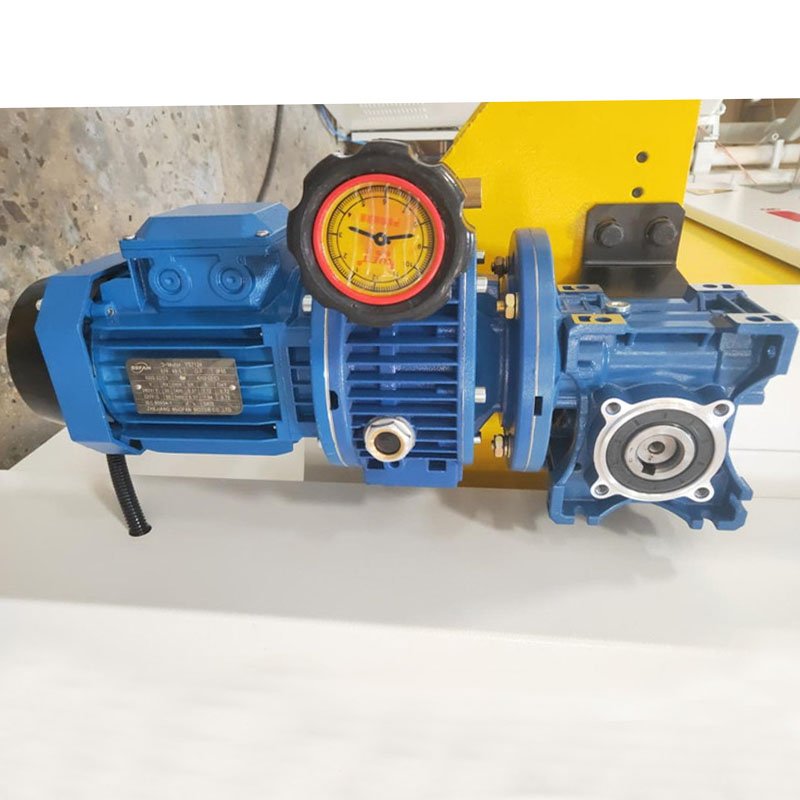

Feeding motor

3 kw ( inverter motor)

Lift & decline motor

0.37kw - 4P

Brush motor

0.25kw-6P

Front feeding roller motor

0.37kw - 4P

Vacuum pump

5.5kw

Working pressure

0.4-0.8Mpa

Compressed air consumption

Max 1 CBM/min

Dust collector volume

30m/s

Dust outlet diameter

200mm x 2pcs 150mm x 1pc

Overall dimension

2449*2003*2247mm

Weight

About 4550kgs

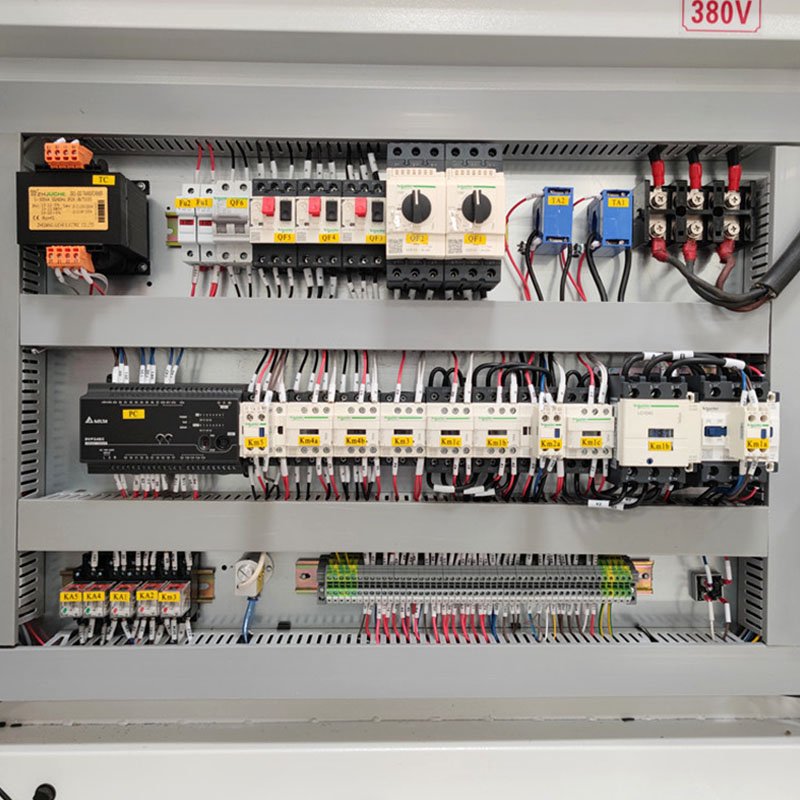

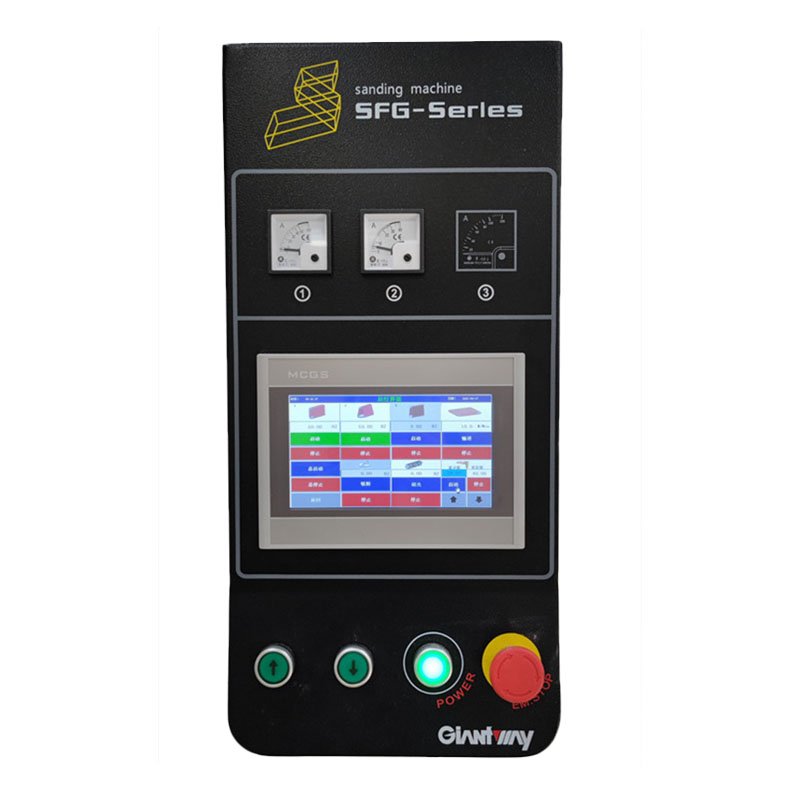

Machine details
