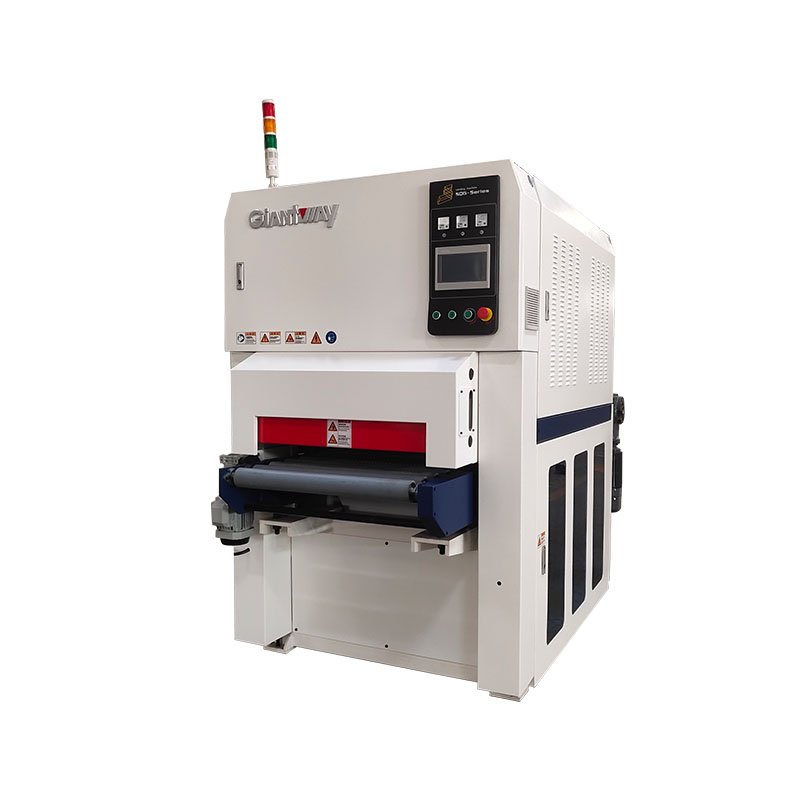

Bottom Sander - SDG700R-R-RPB

SDG series wide belt sander is our bottom sander, usually used in line together with top sander. This machine is a necessary equipment for high productivity facotries, such as wood doors manufacturers, cabinets makers and so on.

413
285
289
286
287

Features

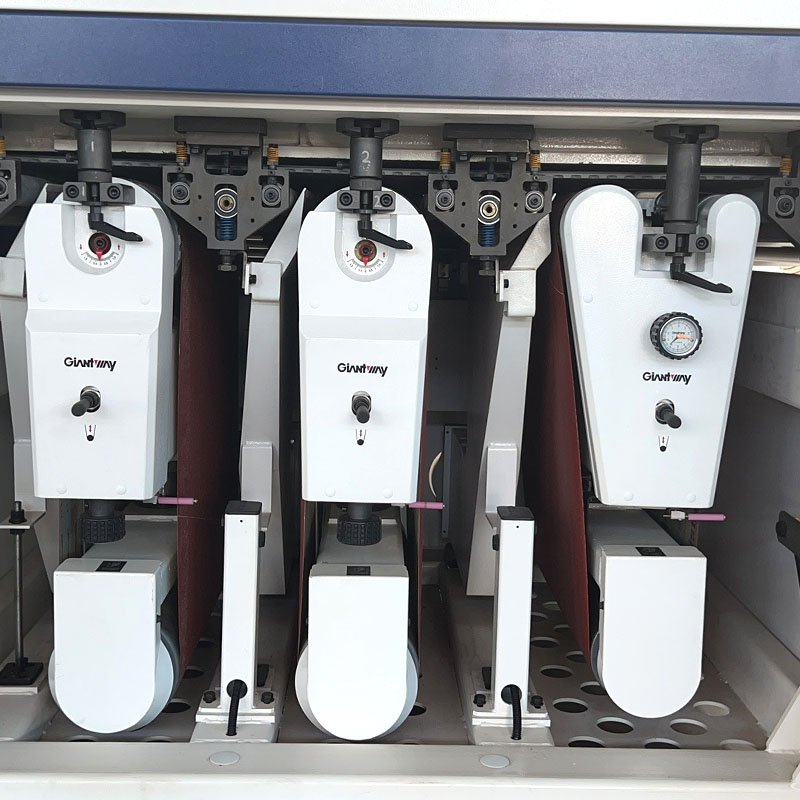

On this machine SDG700R-R-RPB, the 1st working unit is a steel roller; the 2nd working unit is a rubber roller with hardness shore 70; the 3rd working unit is a rubber roller combined with a longitudinal pressure beam. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness  can be made according to customers' requirement.


This machine  main advantage is high cost performance ( good quality and affordable price), the machine is easy to adjust and maintain, our purpose is save your time and labor cost.

Specifications

MODEL

SPC

ITEM

SDG700R-R-RPB

Working width

40-700mm

Working thickness

5-140mm

Constant passline height

900mm

Minimum working length

370mm

First roller diameter (steel)

190mm

Second roller diameter (rubber)

190mm/70°

Third roller diameter (rubber)

115mm/55°

Sanding grit

#80, #120, #180

Feeding speed

0-19m/min

First belt speed

 20m/s

Second belt speed

20m/s

Third belt speed

14m/s

Sanding belt size

730*1900mm

Feeding belt size

705*4070mm

Total power

41.12kw

First belt motor

15kw-4P

Second belt motor

15kw-4P

Third belt motor

7.5kw-4P

Motors position

Inside the machine

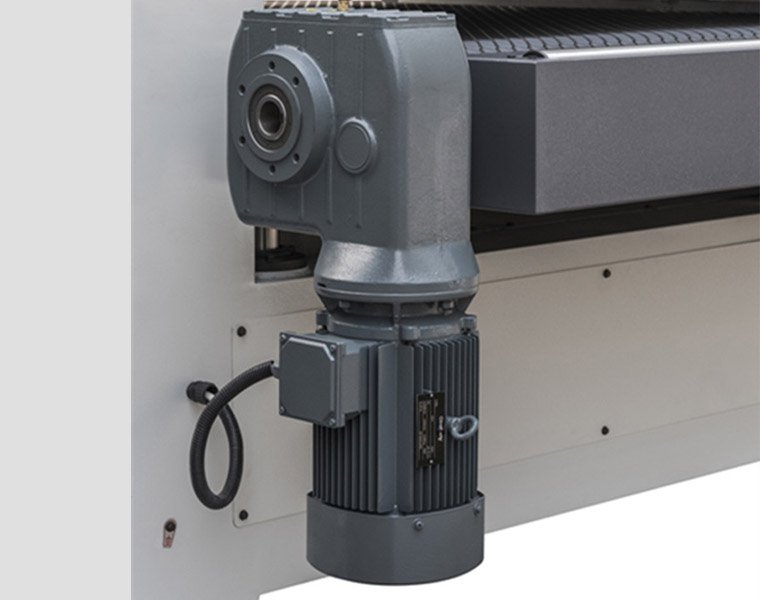

Feeding motor

3 kw ( inverter motor)

Lift & decline motor

0.25kw - 4P

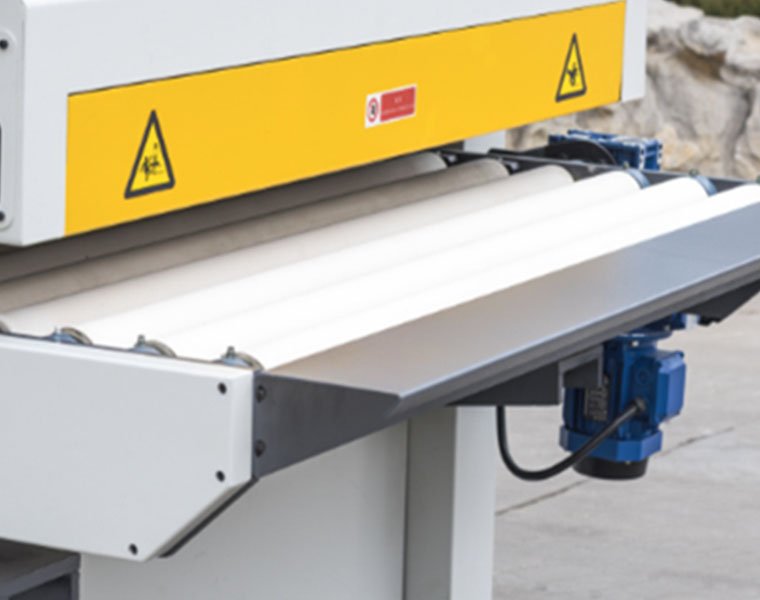

Front feeding roller motor

0.37kw - 4P

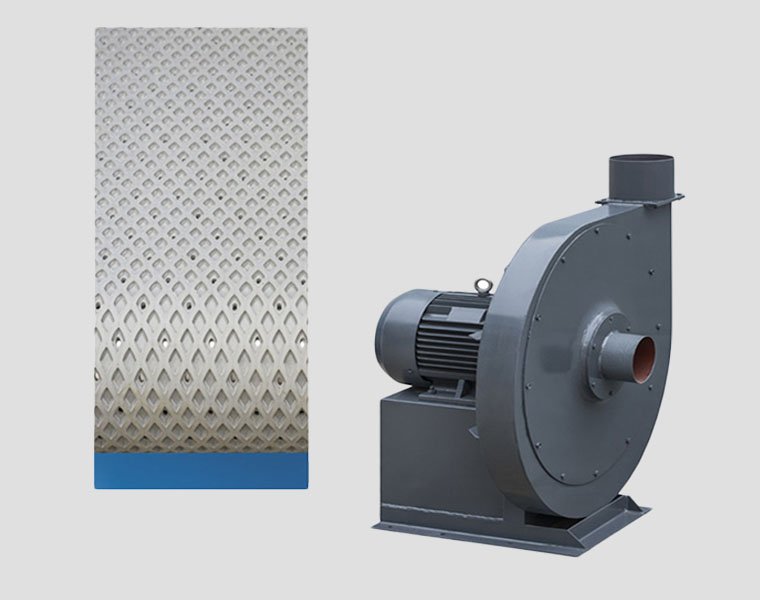

Vacuum pump

5.5kw(optional)

Working pressure

0.4-0.8Mpa

Compressed air consumption

Max 1 CBM/min

Dust collector volume

Min 30m/s

Dust outlet diameter

150mm x 3pc+120mm*1

Overall dimension

2334x1352x2019mm

Weight

About 3300kgs

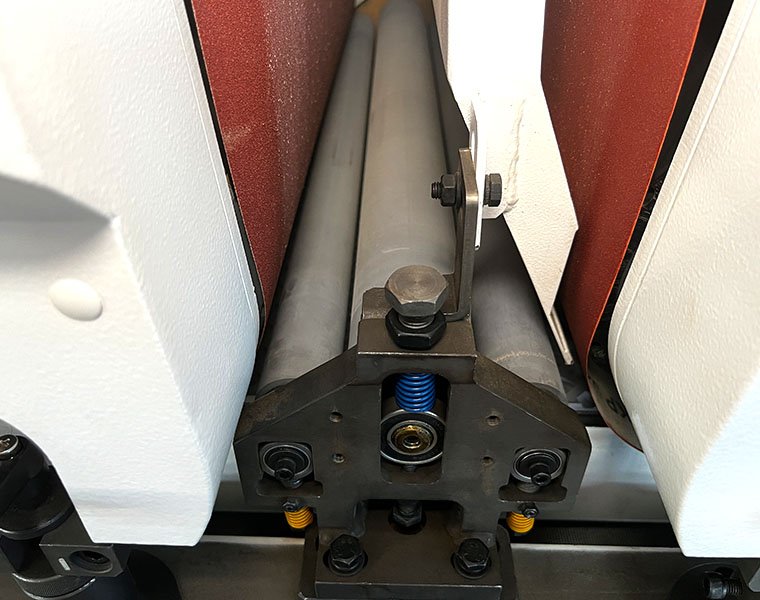

Machine details
