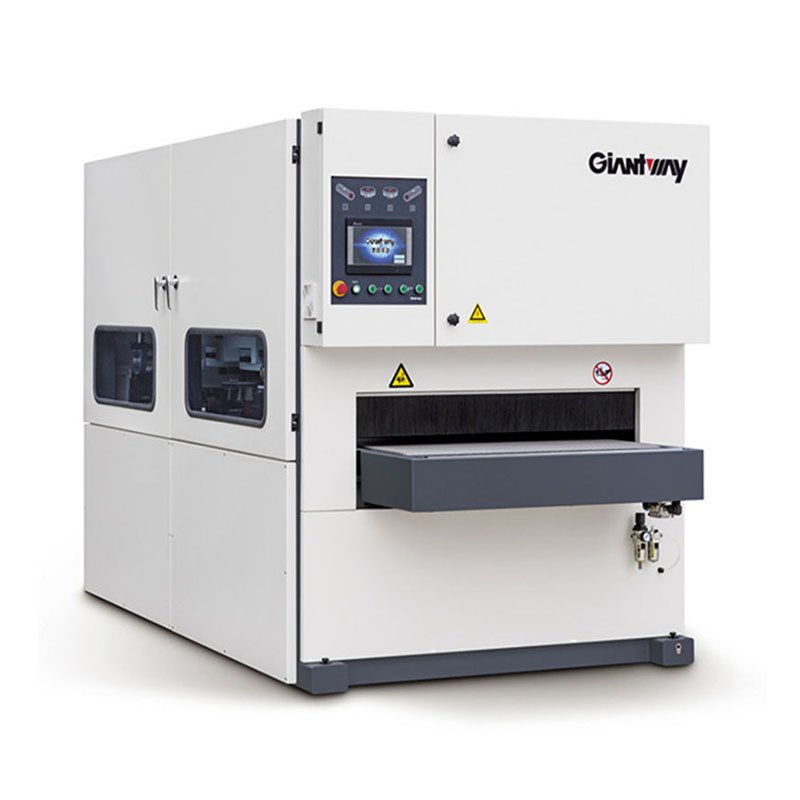

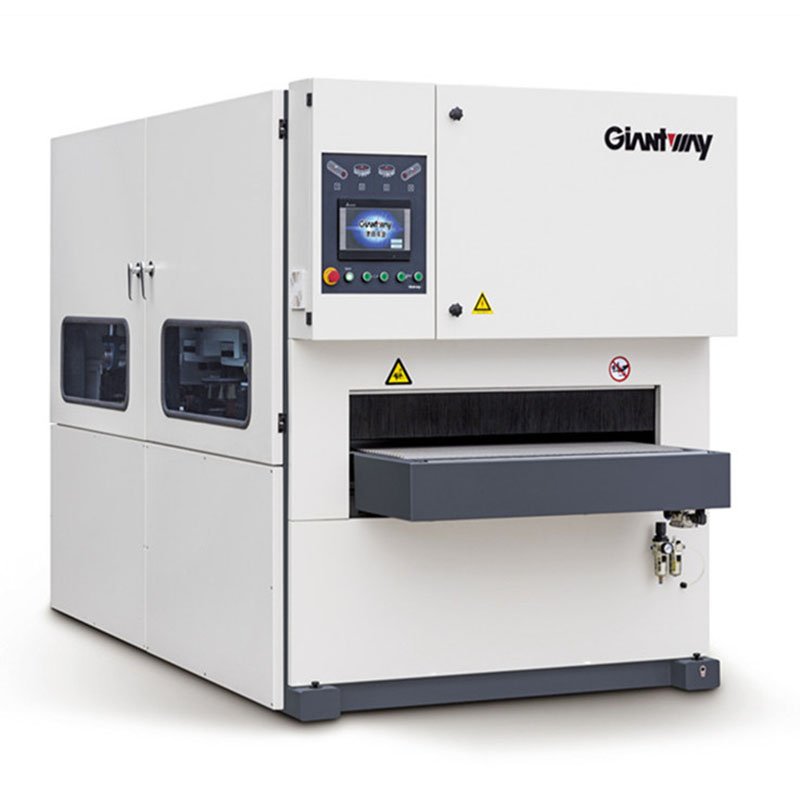

Brush Sander - YHS1100Z+X+W+W

Brush sanding machine is the latest innovation in sanding technology, featuring cross brush rollers, sanding discs and longitudinal brush rollers. This configuration makes this sander a ideal finishing solution for doors, cabinets, shutters, face frames and other furnitures. Giantway brush sanding machine can do both white wood sanding or lacquer sanding by using different abrasive strips.

429
196
197
467
466

Features

Giantway brush sanding machine is to help remove wood fibers from sanding the product, to help break sharp edges on product to prevent white lining, to help blend in or make uniform staining, to help blend in cross grain scratch, sanding imperfection & handling marks.

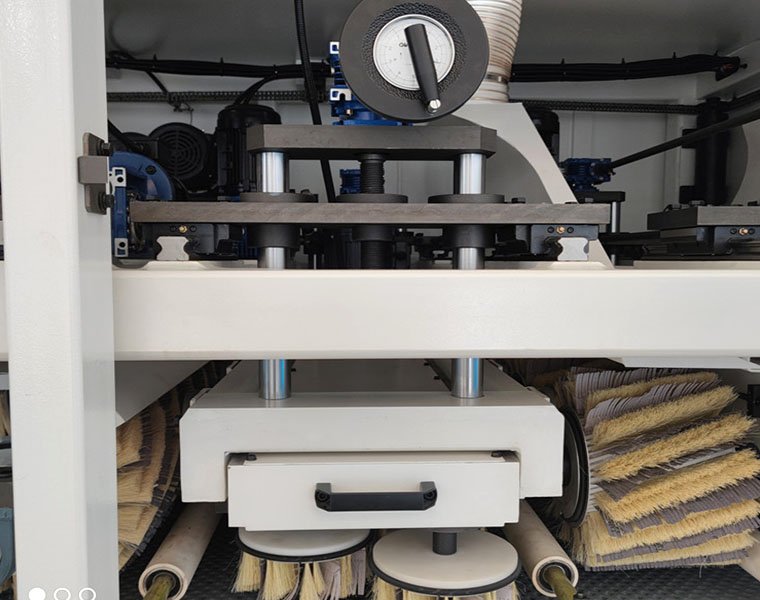

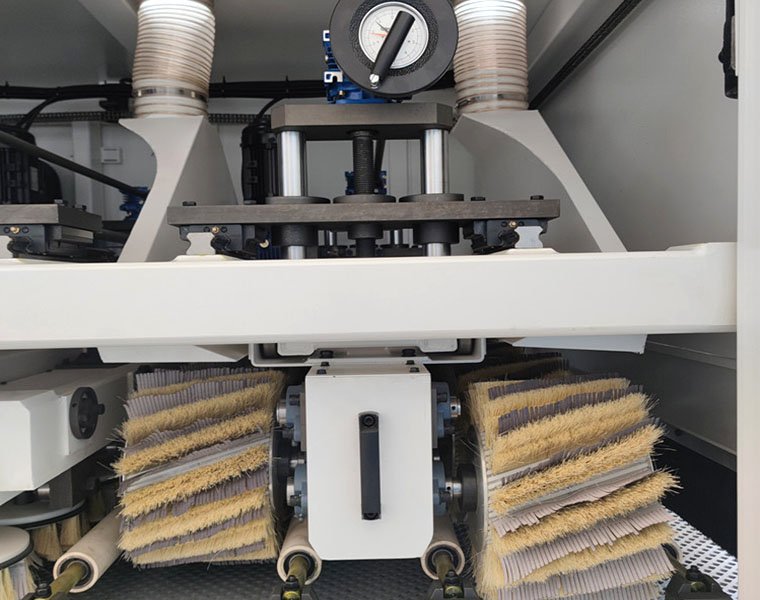

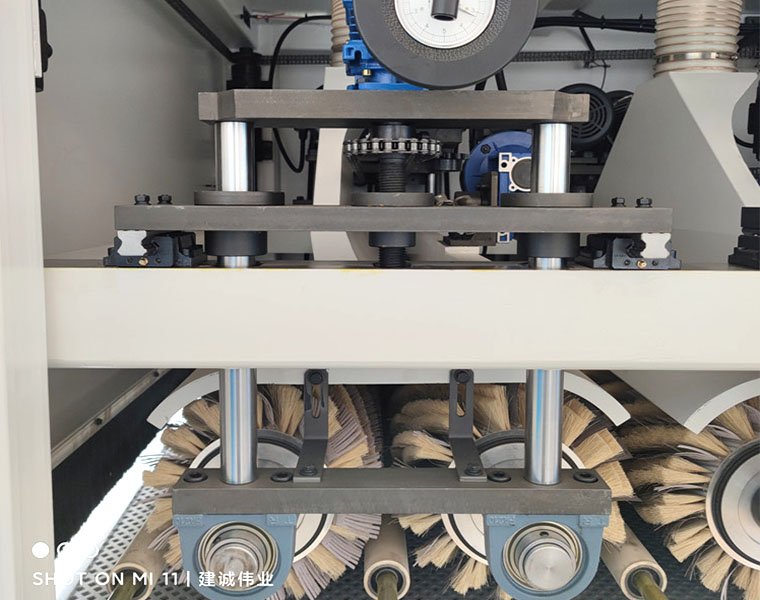

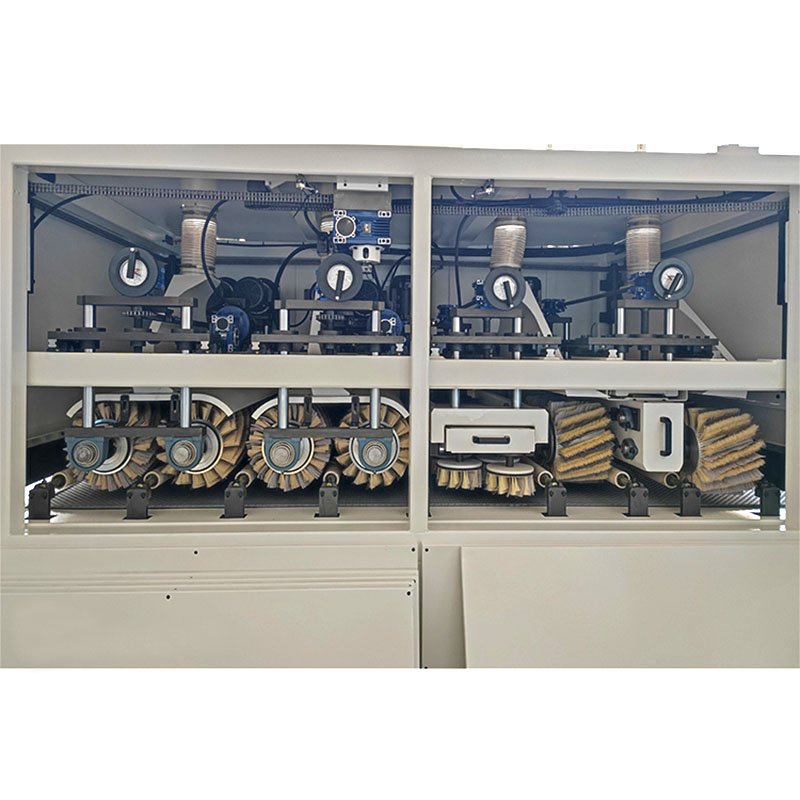

This machine YHS1100 Z+X+W+W,  Z  is for cross brush rollers, X is for sanding discs, W is for longitudinal brush rollers. According to customers' requirement, we can make Z+X+W+W, Z+X+W, Z+W+W or W+ W+W and other different combination.

Specifications

MODEL

SPC

ITEM

YHS1100Z+X+W+W

Working width

100-1100mm

Working thickness

10-100mm

Cross brush rollers speed

Max 550rpm (inverter)

Sanding discs speed

Max 500rpm (inverter)

Horizontal brush rollers speed

Max 550rpm (inverter)

Cross brush rollers oscillating frequency

Max 30times/min(inverter)

Discs station oscillating frequency

Max 30times/ min(inverter)

Horizontal brush rollers oscillating frequency

60times /min

Feeding speed

0-19m/min(inverter)

Cross brush rollers diameter

320mm (8pcs)

Sanding discs diameter

180mm (11pcs)

Horizontal brush rollers diameter

320mm (4pcs)

Total motor power

23.86kw

Feeding motor

4kw(inverter)

Cross brush rollers motor

1.5kw

Cross brush rollers oscillating motor

0.75kw

Horizontal brush rollers motor

1.5kw * 4 pcs

Horizontal brush roller oscillating motor

0.37kw * 2pcs

Discs motor

1.5kw

Discs qty

11 pcs

Discs station oscillating motor

0.75kw

Working units rise and decline motor

0.75kw-4P

Press rollers rise and decline motor

0.37kw

Vacuum pump motor

7.5kw

Dust outlets

150mm*4

Vacuum table exhaust outlet

200mm

Overall dimension

4000*1900*2200mm

Weight

4900kgs
