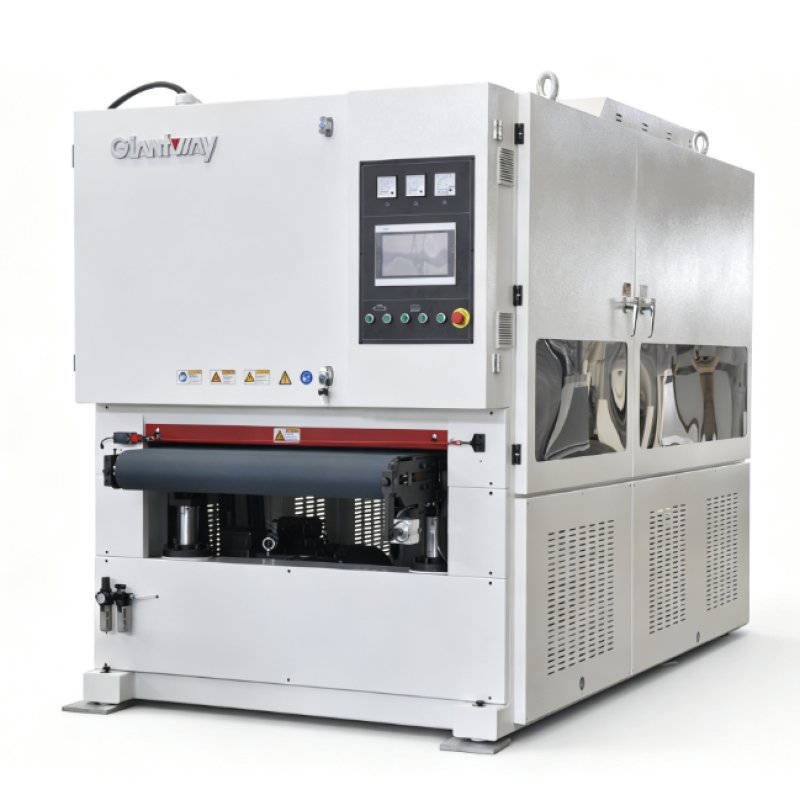

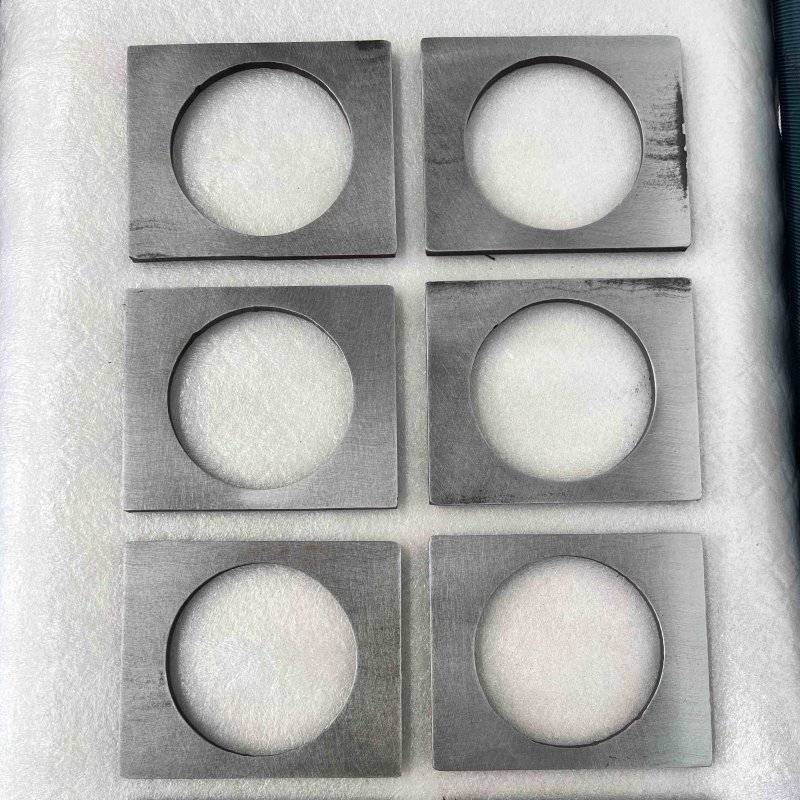

This machine is a sanding machine specifically designed for metal surface finishing. It is capable of removing burrs and oxide scale from laser-cut or cut metal sheets, chamfering cut edges, and producing a brushed surface finish on stainless steel sheets, aluminum sheets, and other metal materials.

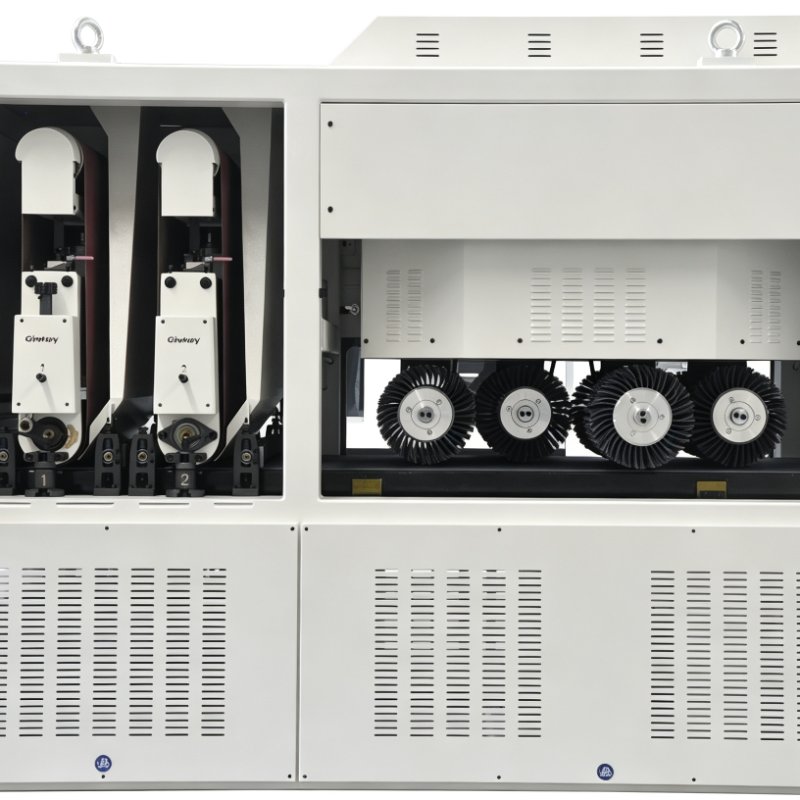

WORKING UNIT:
THE FIRST WORKING UNIT:
◆ The first working unit is a sanding roller (diameter 190mm), complete with sanding belt tension unit; electronic oscillation ; dust hoods; safety systems.
◆ Roller is rubber and helicoidal grooves for cooling.
◆ Roller hardness is shore 75.
◆ Belt size is : 1030*2200mm.
THE SECOND WORKING UNIT:
◆ The second working unit is a sanding roller (diameter 190mm). complete with sanding belt tension unit; electronic oscillation ; dust hoods; safety systems.
◆ Roller is rubber and helicoidal grooves for cooling.
◆ Roller hardness shore 55.
◆ Belt size is : 1030*2200mm.
THE THIRD WORKING UNIT:
◆ The third working unit is a brush roller station, combined 8 pcs abrasive brushes. The abrasive brush rollers perform a planetary motion, revolving around a central axis while simultaneously rotating about it’s own axis.
◆ The abrasive brushes are mainly for edge chamfering.
◆ Abrasive brush roller diameter: 300mm
◆ Abrasive strips are easy to replace.
SPC ITEM | MSG1000R+R+8X |
Working width | 40-1000mm |
Working thickness | 2.5 - 100mm |
Working height | 800-900mm |
Min working size | 50*50mm |
Abrasive belt grit | 60, 80 |
Feeding speed | 0-10m/min |
First belt speed (R) | 19m/s |
Second belt speed (R) | 19m/s |
Rotary brush rollers revolution speed (X) | 35rpm (inverter) |
Rotary brush rollers rotation speed ( X ) | 960rpm (inverter) |
Rotary bruh rollers qty | 8 |
Abrasive belt size | 1030*2200mm |
Feeding belt size | 1000*7010mm |
First belt motor power (R) | 15kw |
Second belt motor power (R) | 11kw |
Rotary brush rollers revolution motor power (X) | 1.5kw (inverter) |
Rotary brush rollers rotation motor power (X) | 3kw * 4pcs (inverter) |
Rotary brush rollers lifting motor power (X) | 0.75kw |
Feeding motor | 4kw |
Feeding table lifting motor | 0.18kw |
Total power | 44.43kw |
Working pressure | 0.4-0.8Mpa |
Dust out port | Φ150mm * 4pcs |
Machine dimension | 3590x1650x2210mm |
Machine weight | 5500kgs |
