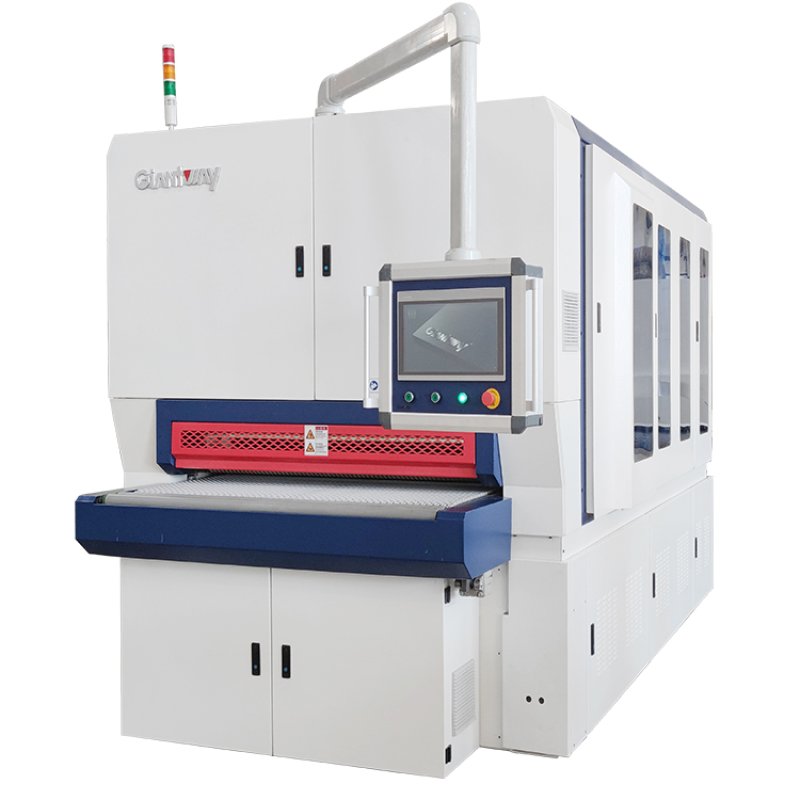

This machine is for both calibrating and super finishing sanding, is a perfect equipment for making doors, cabinets, or high class furniture.
WORKING SYSTEM (Working system moves UP& DOWN)

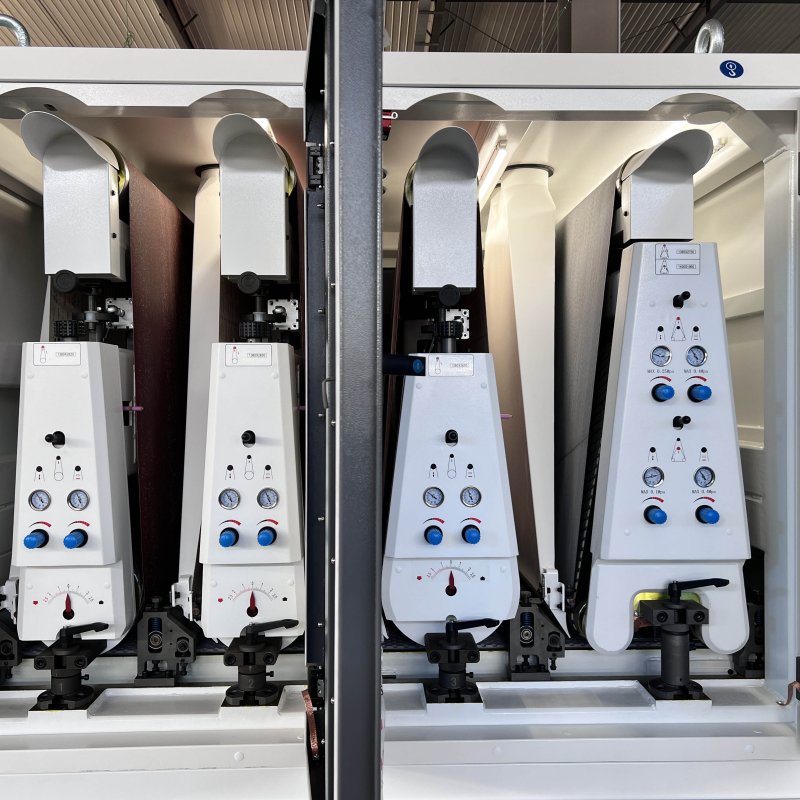

Modular production is on the GSM series piano sander, the customers can choose the different modular units according to their need. Modular production gives the customers variable sanding application and sanding function.

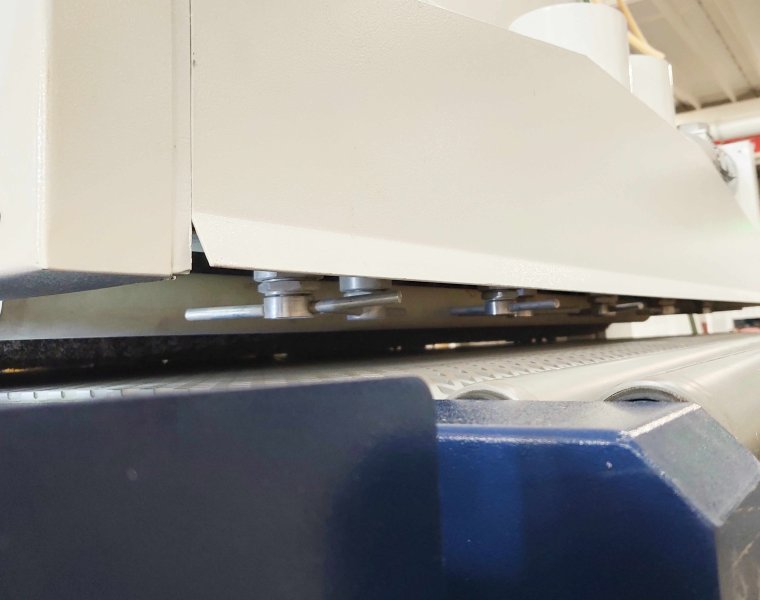

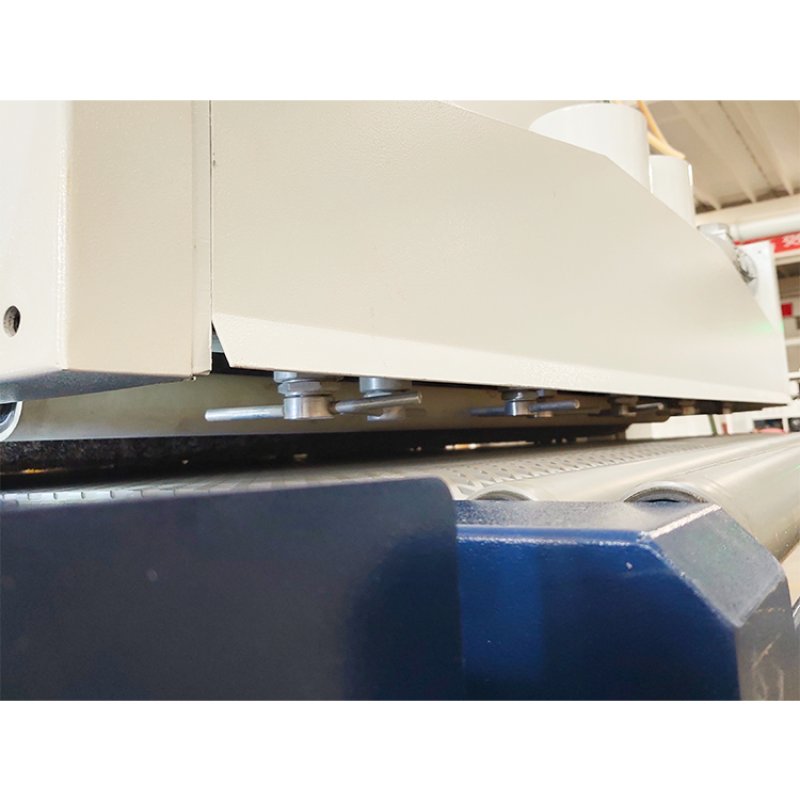

Working pieces detecting system
The working pieces shape and size are detected precisely, the controller processes the contour data quickly and gives accurate pressure data to the ESP （ electromagnetic sanding pad） system, which gives required press to each segment of the pressure beam. The mechanical detecting system is with good stability, is unacted by the working pieces color. This detecting system combined with the ESP system ensures the entire surface of the working pieces gets uniform sanding, no less sanding, no over sanding, no sanding marks.

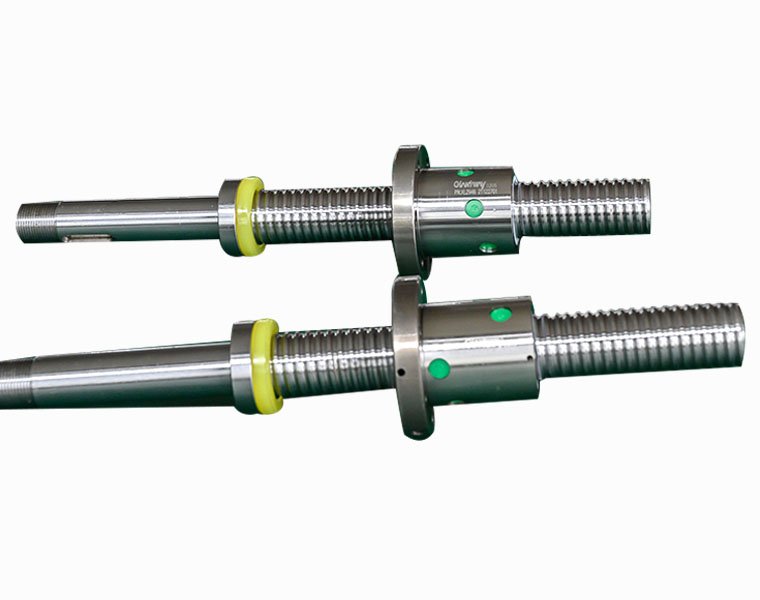

GSM series sander is with constant passline, the working table is fixed, is suitable for production line. The working units move up or down. The lifting system is with ball screws, lift precisely and no vibration, the lifting tolerance is within 0.01mm.
| GSM1350R+R+R+LF |
Working width | 40-1350mm |
Working thickness | 2.5-100mm |
Working table height | 900mm |
Electromagnetic pressure blocks qty | 22 |
Feeding speed | 0-19m/min(inverter) |
First steel roller diameter | 240mm (steel) |
Fist head sanding belt size | 1380*2620mm |
Second rubber roller diameter | 240mm (shore 70) |
Second head sanding belt size | 1380*2620mm |
Third rubber roller diameter | 320mm (shore 55) |
Third head sanding belt size | 1380*2620mm |
Piano head belt size | 1380*2750mm |
Chevron belt size | 1400*1900mm |
First belt motor | 22kw -4p |
Second belt motor | 22kw -4p |
Third belt motor | 15kw -4p |
Fourth belt motor | 15kw -4p |
Feeding motor | 4kw (inverter) |
Lifting motor | 0.75kw-4p |
Brush roller motor | 0.25kw - 6p (2pcs ) |
Vacuum pump motor | 7.5kw |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | <1 CBM/min |
Average speed of dust collector | >30m/s |
Outlets diameter and qty | Φ150*10 |
Overall dimension | 4500*2040*2300mm |
Weight | About 10500kgs |
