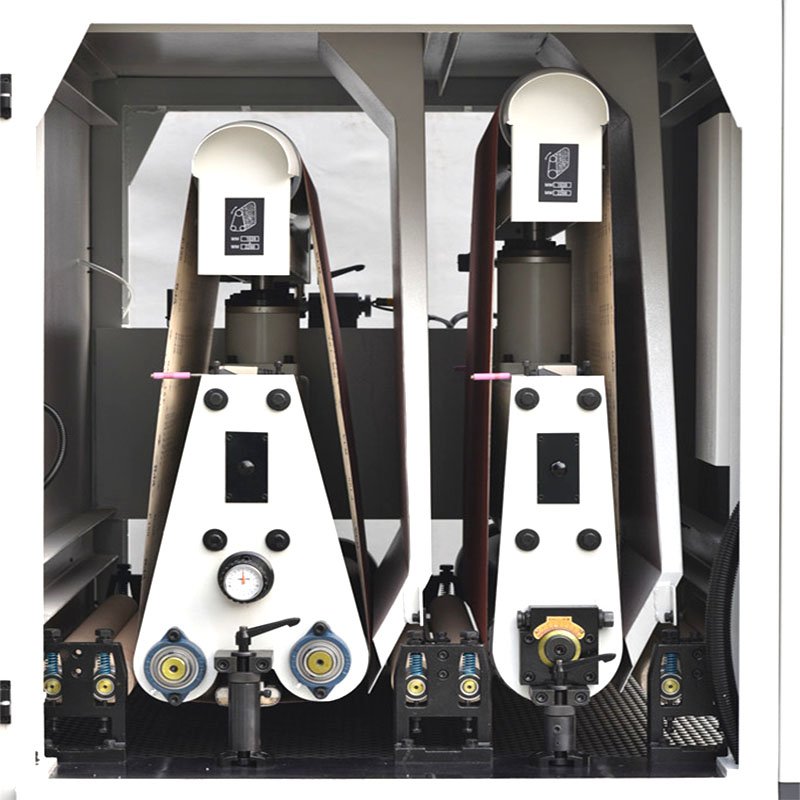

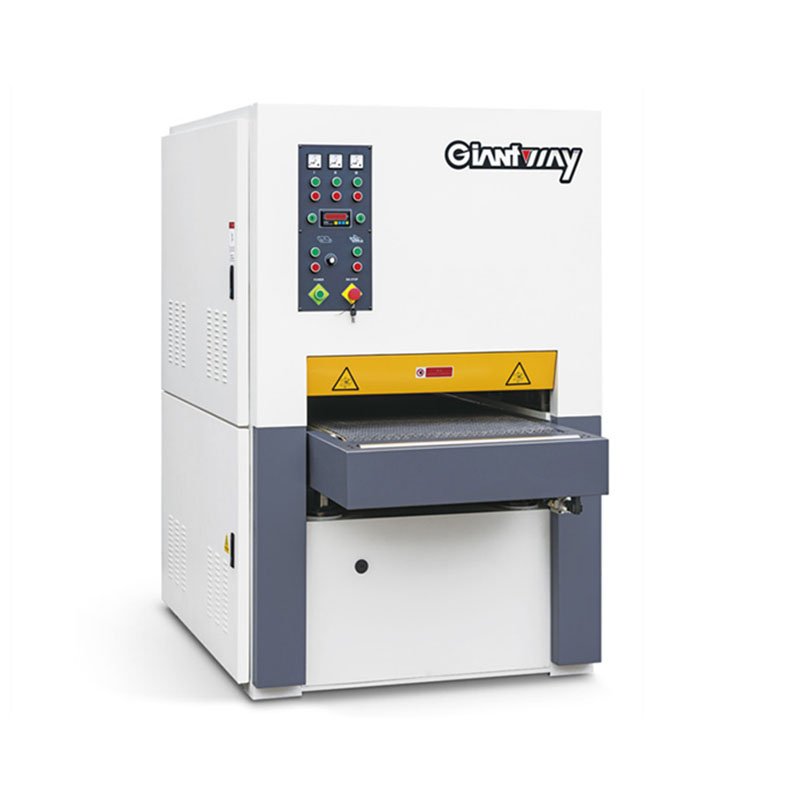

This wide belt sander SGJ700R-RPA has 25 years production experience, it is our most mature product. We install two working units on this machine. The first working unit is a steel roller, diameter 190mm; the second working unit is a combination of roller (diameter 115mm) and pad.This machine is designed for calibrating and fine sanding on solid wood, glued panels, mdf, plywood and other wooden furniture parts.
We applied all our experience in sanding technology to make this type machine. It’s main advantage is high cost performance ( good quality and affordable price), this machine is easy to adjust and maintain, our purpose is save you time and cost.
MODEL SPC ITEM | SGJ700R-RPA |
Working width | 40-700mm |
Working thickness | 2.5-150mm |
Shortest working length | 390mm |
First roller diameter | 190mm |
Second roller diameter | 115mm |
Feeding speed | 6-24m/min |
First belt speed | 21.5m/s |
Second belt speed | 14m/s |
Sanding belt size | 730*1900mm |
Total power | 24.43kw |
First belt motor | 15kw |
Second belt motor | 7.5kw |
Motors position | Inside |
Feeding motor | 1.5kw |
Lift & decline motor | 0.25kw |
Brush motor | 0.18kw |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | <1CBM/min |
The average speed of sucked air | >30m/s |
Overall dimension | 1850*1270*1970mm |
Weight | 1810kgs |
