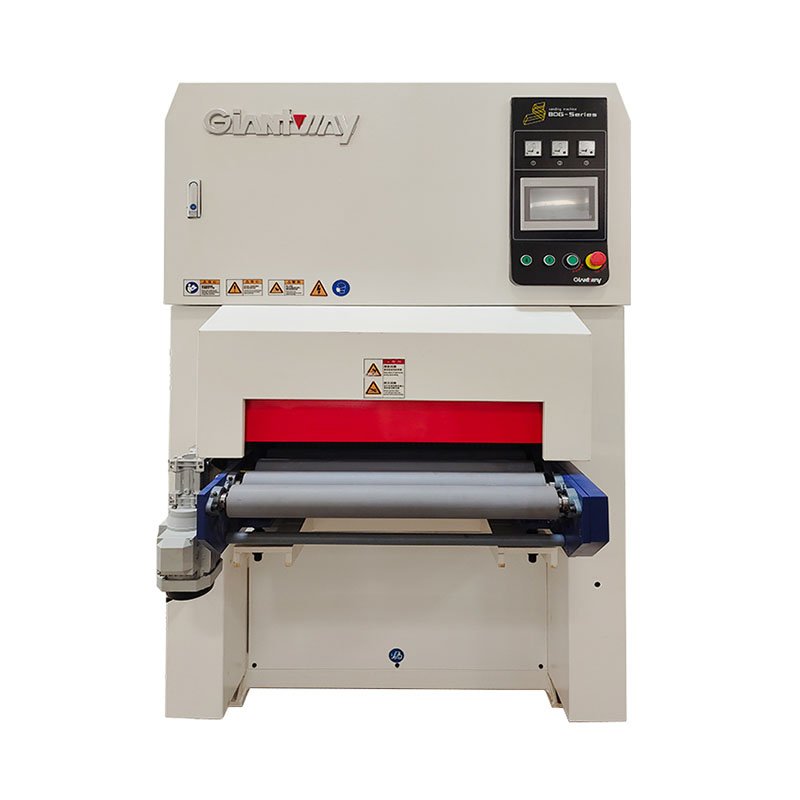

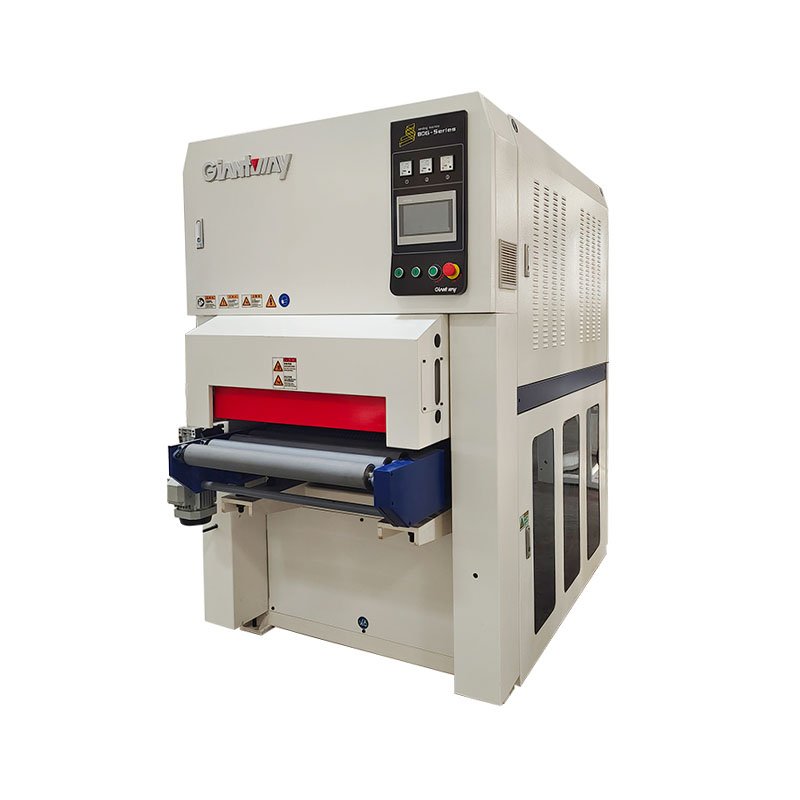

Planer Sander - BDG700K-R-RPA

This machine BDG700K-R-RPA is bottom Planer sander,which is for cutting and sanding the bottom surface of the working pieces. Planer sander is good for heavy calibration of glued panels, solid wood panels or bamboo panels where we are needing to remove over 2 mm of material and finishing sanding at grit 180 in a single pass.

425
227
230
231
228
229

Features

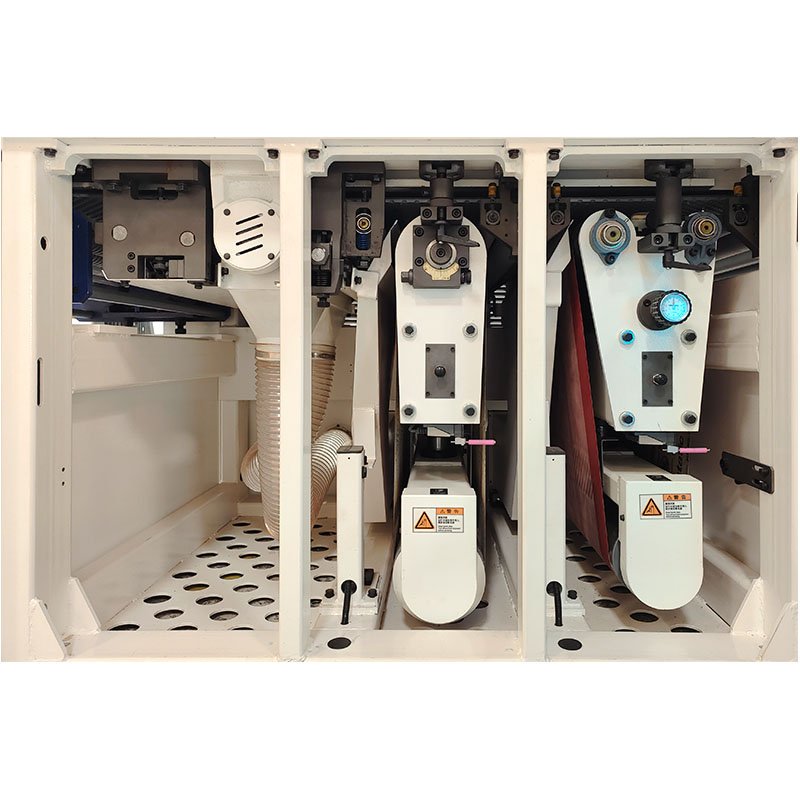

This machine has 3 working units. The first working unit is a planer (knife) station; the second working unit is a steel roller; and the third working unit is a combination of rubber roller and pad. This configuration is good for planing also for sanding.


Giantway planer sander complete with reliable safety device before or behind the working units, especially before the planer head, we assemble anti-back finger, one direction press rollers and segmented press shoes to ensure the feeding smooth.

Specifications

MODEL

SPC

ITEM

BDG700K-R-RPA

Working width

50-700mm

Working thickness

10-140mm

Conveyor belt working table height

900mm

Working length

Min 390mm

Planer roller diameter

125mm

Planer knife size

30*12*2.5mm / 114pcs

1st sanding roller diameter

190mm / 70°

2nd sanding roller diameter

115mm / 55°

Planer speed

24.9m/s

1st belt speed

21m/s

2nd belt speed

14m/s

Feeding speed

0-19m/min (inverter)

Abrasive belt grit

120#, 180#

Abrasive belt size

730*1900mm

Feeding belt size

705*4190mm

Total motor power

46.62kw

Planer motor power

15kw-2P

1st belt motor power

15kw-4P

2nd belt motor power

7.5kw -4P

Feeding motor power

3kw(inverter)

Rise and decline motor power

0.25kw-4P

Front feeding motor power

0.37kw-4P

Adsorption fan motor power

5.5kw

Working pressure

0.4-0.8 Mpa

Compressed air consumption

Max 1cbm/min

Average speed of dust collecting system

>30m/s

Overall dimension

2400*1350*1970mm

N.W.

3150kgs


Machine details
