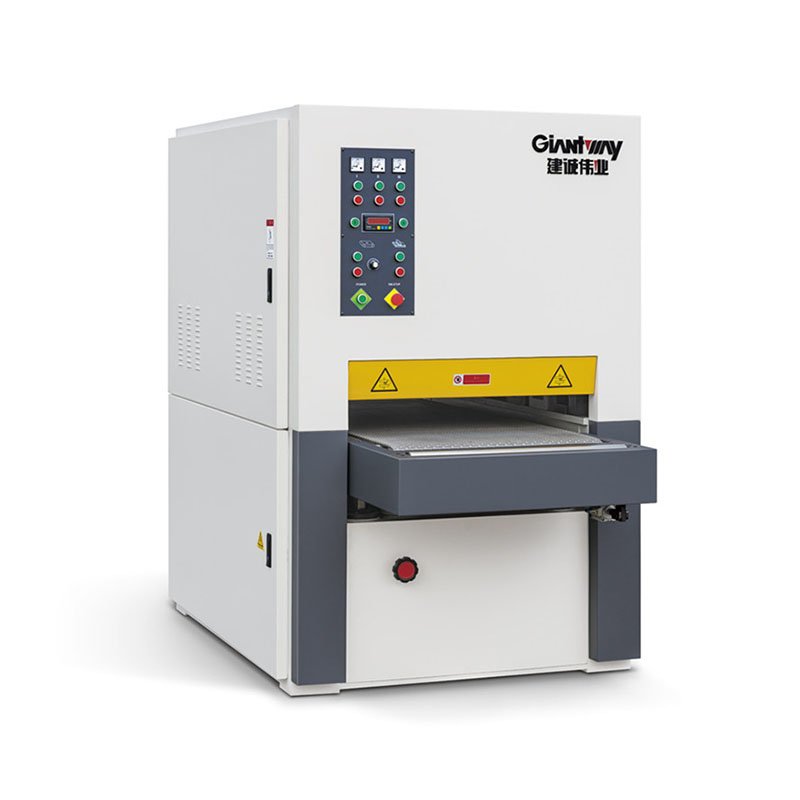

Planer sander BSG700K-R-RP is a heavy duty sanding machine special designed for big stock removal. One pass, can remove minimum 1mm. The planer sander is suitable for glue panel sanding, solid wood sanding and bamboo board sanding or other big stock removal sanding.
This machine has 3 working units. The first working unit is a planer (knife) station; the second working unit is a steel roller; and the third working unit is a combination of rubber roller and pad. This configuration is good for planing also for sanding.
Giantway planer sander complete with reliable safety device before or behind the working units, especially before the planer head, we assemble anti-back finger, one direction press rollers and segmented press shoes to ensure the feeding smooth.
MODEL SPC ITEM | BSG700K-R-RP |
Working width | 50-700mm |
Working thickness | 10-150mm |
Working length | Min 385mm |
Planer roller diameter | 125mm |
Planer knife size | 15*15*2.5mm |
1st sanding roller diameter | 190mm |
2nd sanding roller diameter | 115mm |
Planer RPM | 3800RPM |
1st belt speed | 21m/s |
2nd belt speed | 14m/s |
Feeding speed | 0-19m/min (inverter) |
Abrasive belt size | 730*1900mm |
Feeding belt size | 705*4000mm |
Total motor power | 40.98kw |
Planer motor power | 15kw-2P |
1st belt motor power | 15kw-2P |
2nd belt motor power | 7.5kw -2P |
Feeding motor power | 3kw(inverter) |
Rise and decline motor power | 0.25kw-4P |
Brush motor power | 0.18kw-4P |
Working pressure | 0.4-0.8 Mpa |
Compressed air consumption | 1cbm/min |
Average speed of sucked air | Min. 30m/s |
Overall dimension | 2300*1280*1970mm |
N.W. | 2500kgs |
