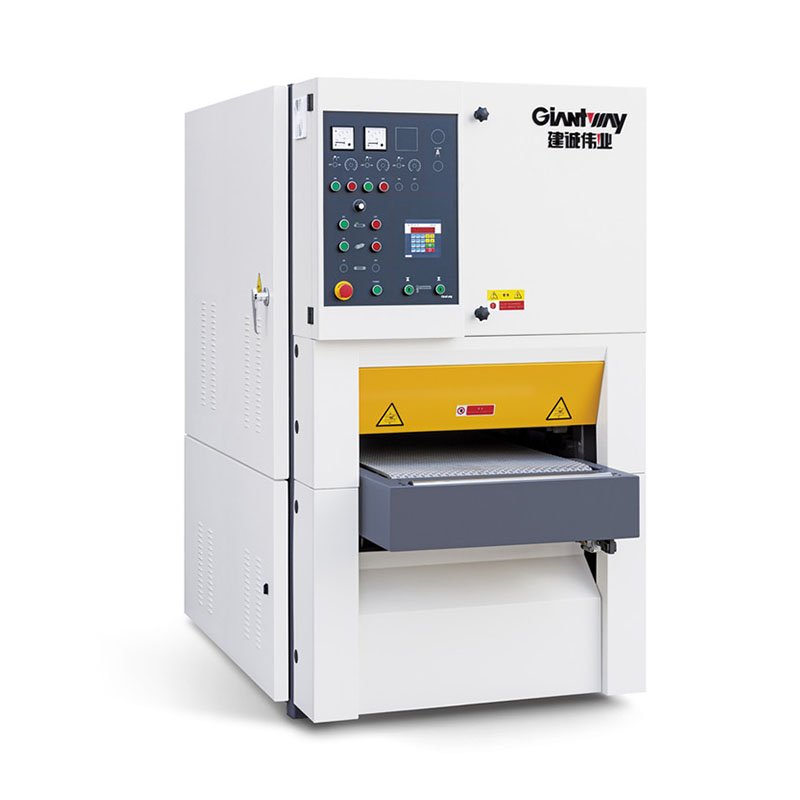

Giantway QSG series wide belt sander is a popular type on European market. This QSG650R-RA has two abrasive belts, the belt size is 680*2200mm, this machine is a perfect tool for short pieces and small panels sanding.

393
349
350
337
314

Features

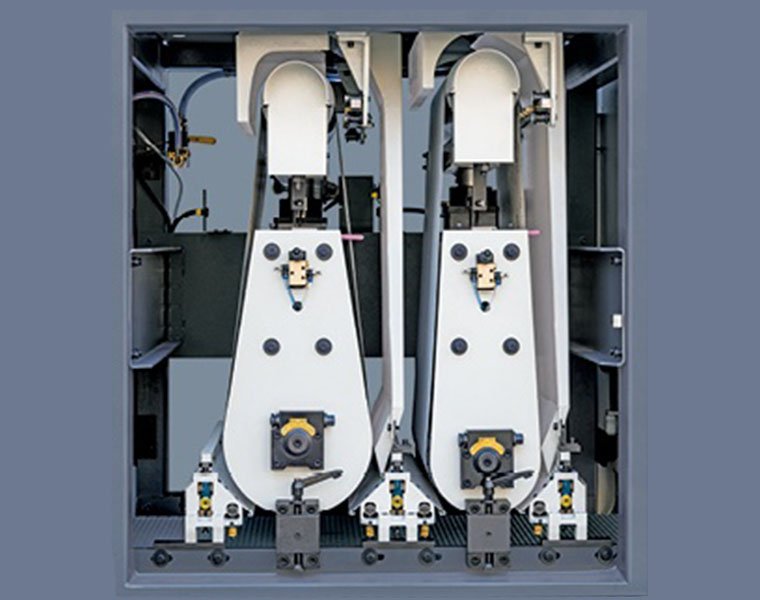

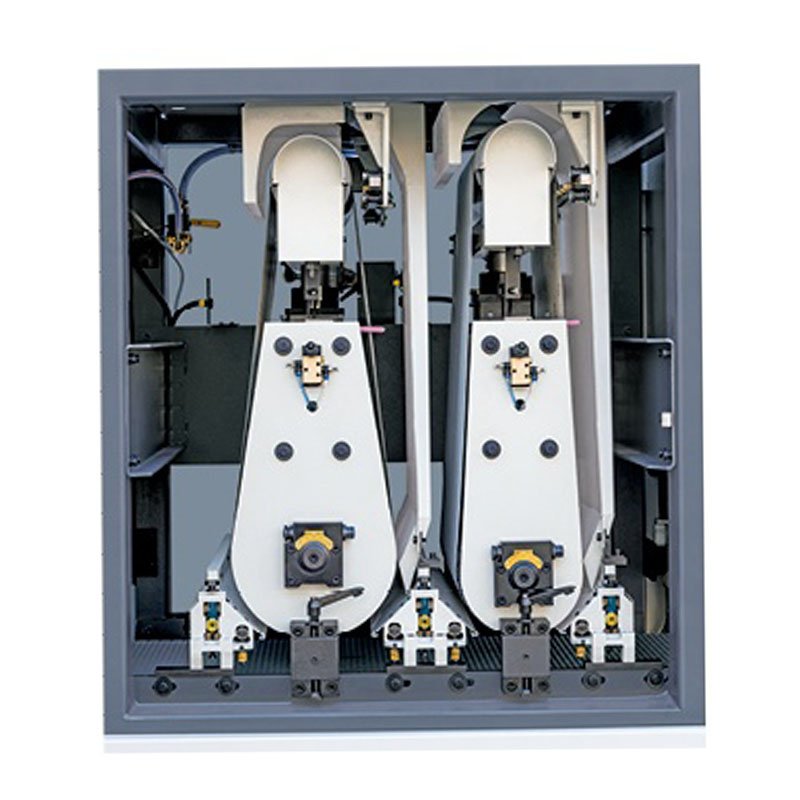

The first working unit on this machine is a steel roller and diameter is 240mm, and the second working unit is a rubber roller and diameter is 320mm. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness can be made according to customers' requirement.


QSG series sanding machines are Giantway company applied our years experience integrated European machine advantage to make. This series machines featuring higher precision, longer life, energy-saving and more, are ideal equipment for sanding job.

Specifications

MODEL

SPC

ITEM

QSG650R-RA

Working width

40-650mm

Working thichness

3-150mm

Feeding speed

0-19m/min (inverter)

First belt speed

22m/s

Second belt speed

20m/s

Sanding belt size

680*2200mm

Total power

28.17KW

First belt motor

15KW

Second belt motor

11KW

Feeding motor

1.5kw (inverter)

Lift & decline motor

0.37kw

Brush motor

0.25kw

Working pressure

0.4-0.8Mpa

Compressed air consumption

1.5CBM/min

Overall dimension

2250*1250*2100mm

Weight

2500kgs
