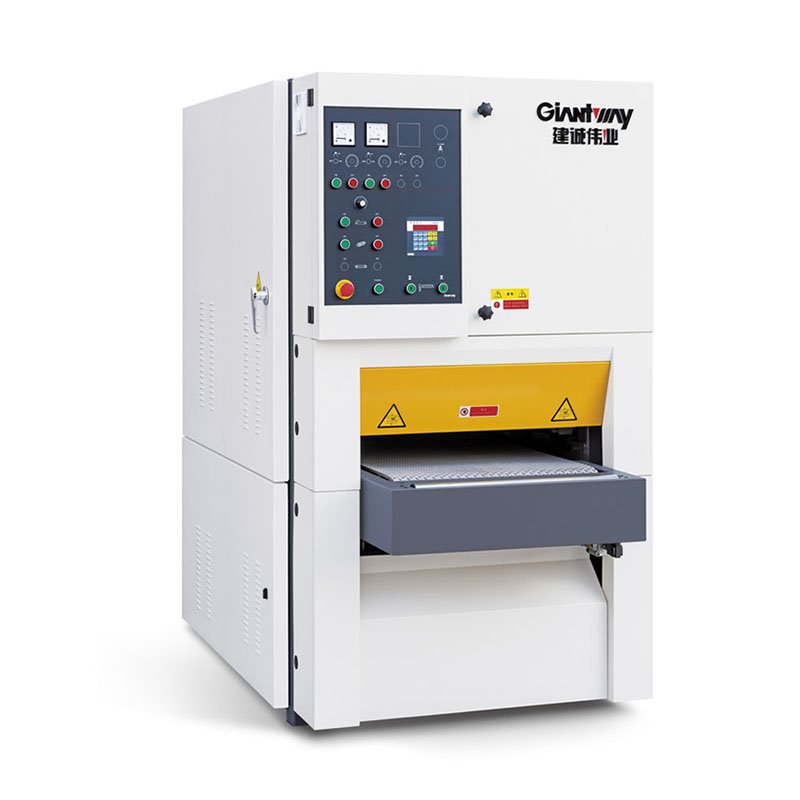

Giantway QSG series wide belt sander is a popular type on European market. This QSG650R-RPA has two abrasive belts, the belt size is 680*2200mm, this machine is a perfect tool for short pieces and small panels sanding.

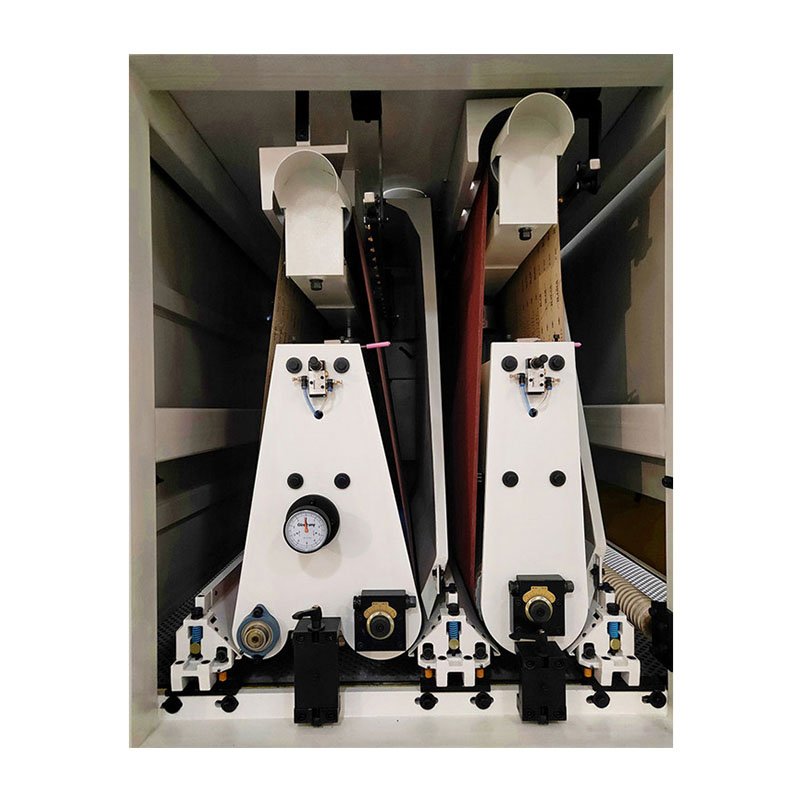

The first working unit on this machine is a steel roller and diameter is 240mm, the second working unit is a combination of 140mm rubber roller and longitudinal pad. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness can be made according to customers' requirement.
QSG series sanding machines are Giantway company applied our years experience integrated European machine advantage to make. This series machines featuring higher precision, longer life, energy-saving and more, are ideal equipment for sanding job.
MODEL SPC ITEM | QSG650R-RPA |
Working width | 40-650mm |
Working thickness | 3-150mm |
Minimum working length | 390mm |
Feeding speed | 0-19m/min ( inverter) |
1st roller diameter | 240mm |
2nd roller diameter | 140mm |
First belt speed | 22m/s |
Second belt speed | 14m/s |
Sanding belt size | 680*2200mm |
Conveyor size | 660*3880mm |
Total power | 28.17kw |
First belt motor | 15kw |
Second belt motor | 11kw |
Lift & decline motor | 0.37kw |
Brush motor | 0.25kw |
Feeding motor | 1.5kw |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 1.5CBM/min |
Overall dimension | 2200*1250*2100mm |
Weight | 2200kgs |
