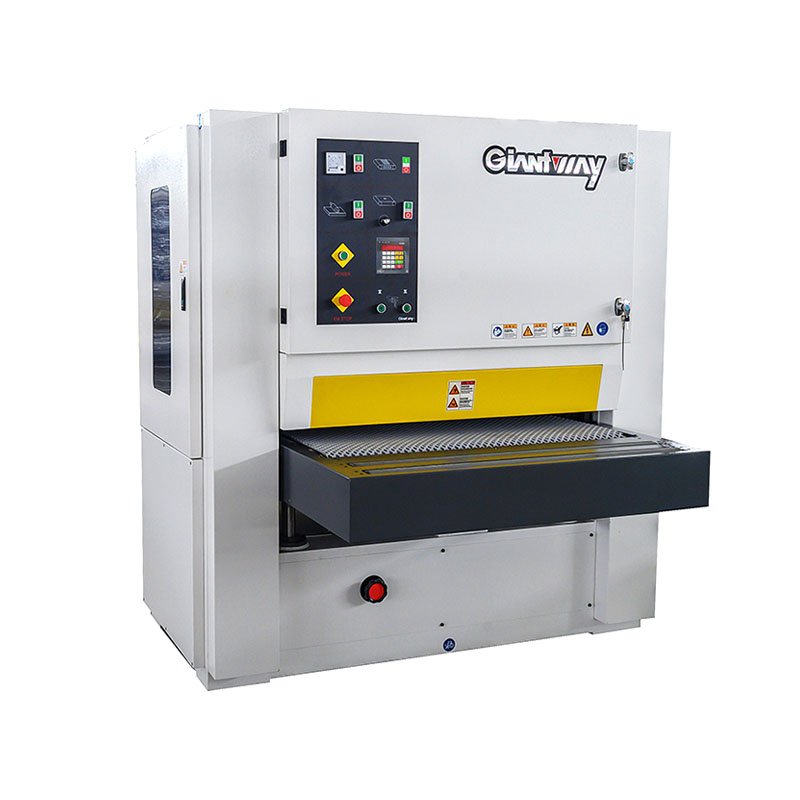

Wide Belt Sander - SGJ1300RPA

This wide belt sander SGJ1300RPA has 25 years production experience, it is our most mature product. We install one working unit on this machine. The working unit is a rubber roller, diameter 210mm. This machine is designed for calibrating and fine sanding on solid wood, glued panels, mdf, plywood and other wooden furniture parts.

404
388
387
386
390
389

Features

We applied all our experience in sanding technology to make this type machine. It’s main advantage is high cost performance ( good quality and affordable price), this machine is easy to adjust and maintain, our purpose is save you time and cost.

Specifications

MODEL

SPC

ITEM

STANDARD  TYPE

Calibrating roller diameter

210mm

Working width

40-1300mm

Working thickness

2.5-150mm

Feeding speed

0-19m/min

Abrasive belt speed

18m/s

Sanding belt size

1330*2200mm

Total power

22.12kw

First belt motor

18.5kw

Feeding motor

3kw (inverter)

Lift & decline motor

0.37kw

Brush motor

0.25kw

Working pressure

0.4-0.8Mpa

Compressed air consumption

1CBM/min

Overall dimension

1950*2000*1980mm

Weight

2400kgs


Machine details
