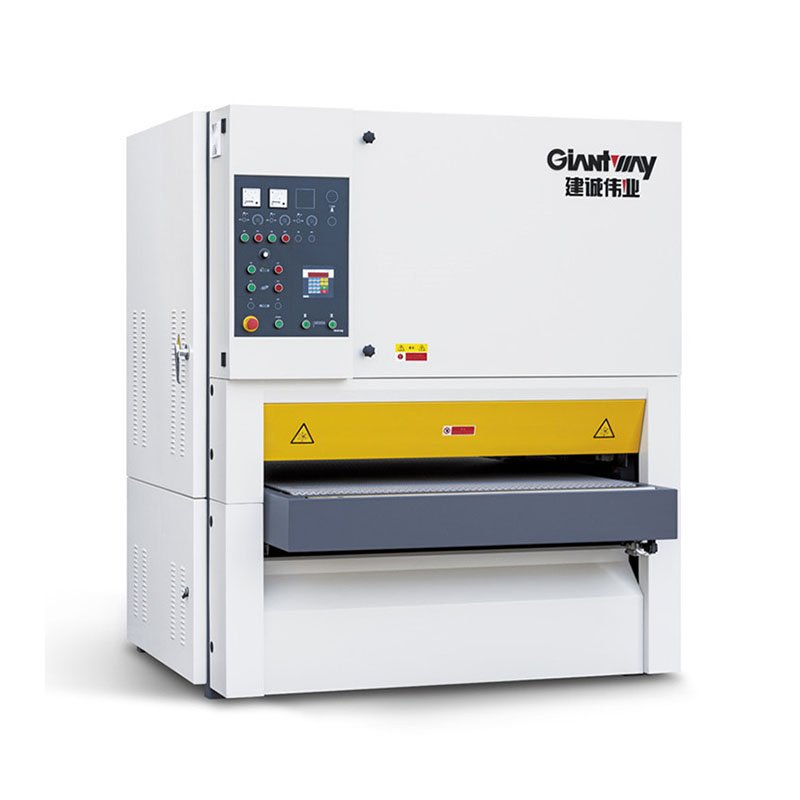

Giantway QSG series wide belt sander is a popular type on European market. This QSG1350R-RPA has two abrasive belts, the belt size is 1380*2620mm, this machine is a perfect tool for solid wood, furniture and panels sanding.

398
339
340
337
314

Features

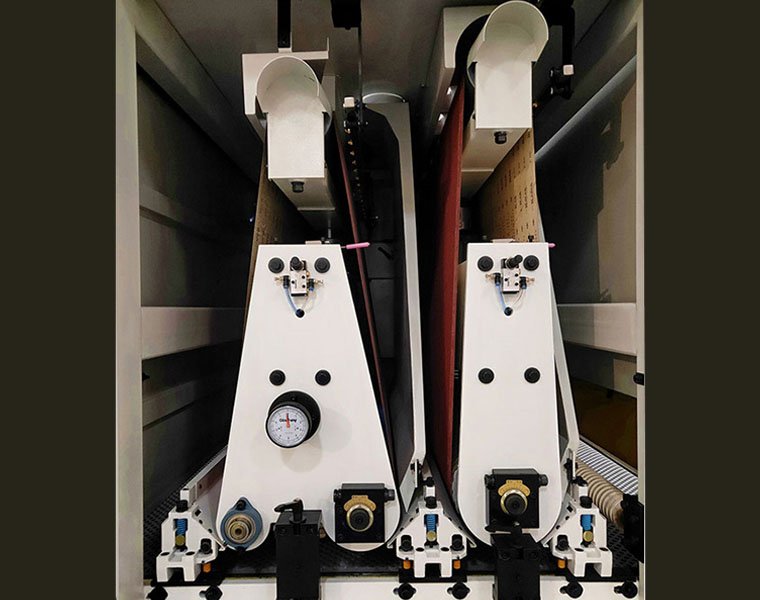

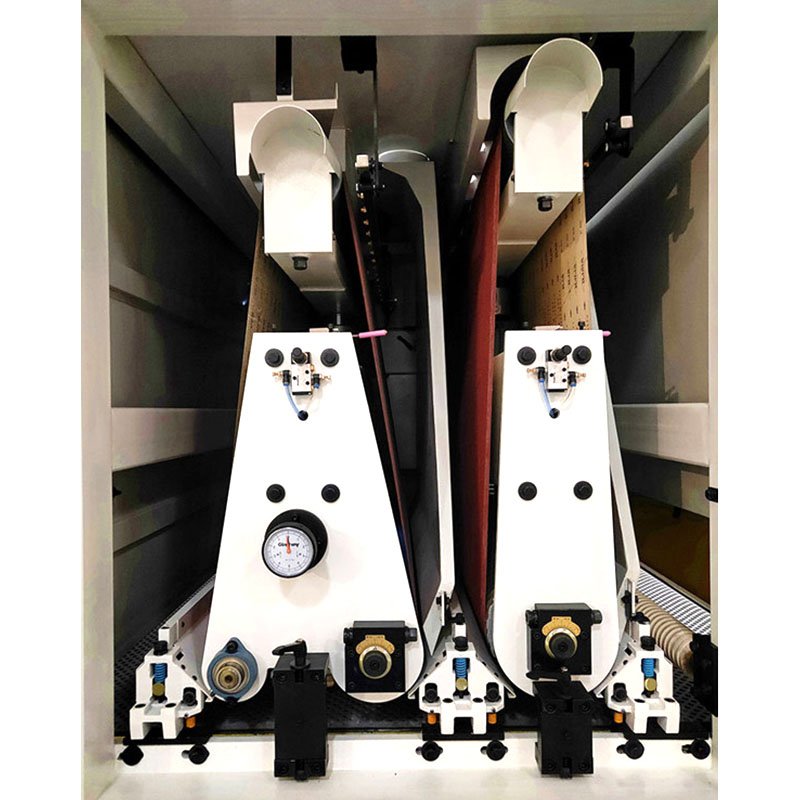

The first working unit on this machine is a steel roller and diameter is 240mm, the second working unit is a combination of 180mm rubber roller and longitudinal pad. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness can be made according to customers' requirement.


QSG series sanding machines are Giantway company applied years experience integrated European machine advantage to make. This series machines featuring higher precision, longer life, energy-saving and more, are ideal equipment for sanding job.

Specifications

MODEL

SPC

ITEM

QSG1350R-RPA

Working width

40-1350mm

Working thickness

3-150mm

Minimum working length

460mm

Feeding speed

0-19m/min ( inverter)

1st roller diameter

240mm

2nd roller diameter

180mm

First belt speed

22m/s

Second belt speed

16m/s

Sanding belt size

1380*2620mm

Conveyor size

1360*4000mm

Total power

40.67kw

First belt motor

22kw

Second belt motor

15kw

Lift & decline motor

0.37kw

Brush motor

0.25kw

Feeding motor

3kw( inverter)

Working pressure

0.4-0.8Mpa

Compressed air consumption

1.5CBM/min

Overall dimension

2300*2000*2300mm

Weight

4000kgs
