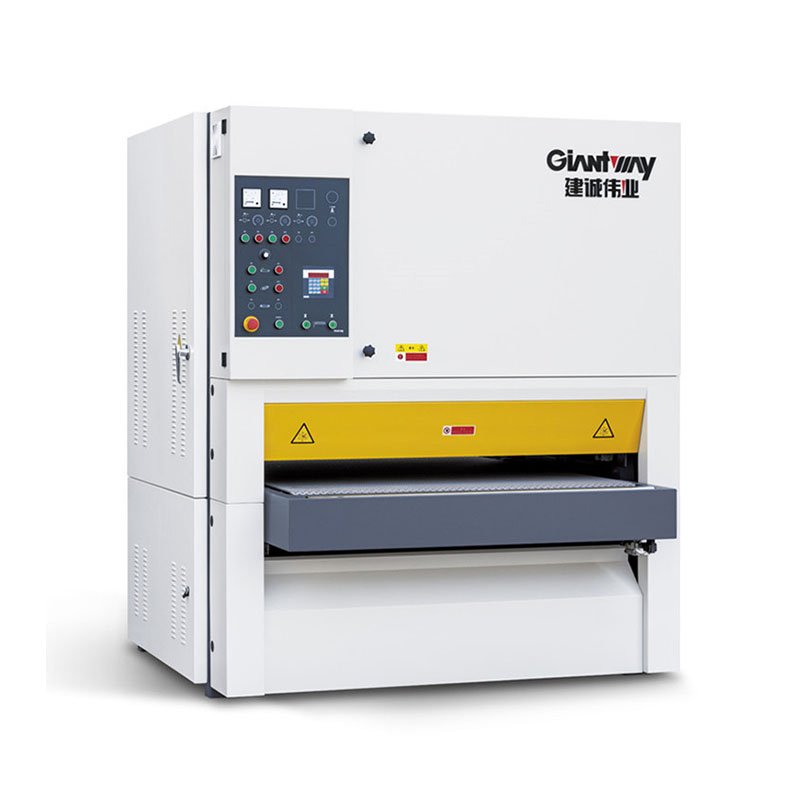

Giantway QSG series wide belt sander is a popular type on European market. This QSG1100R-R-RPA has three abrasive belts, the belt size is 1130*2620mm, this machine is a perfect tool for solid wood, furniture and panels sanding.

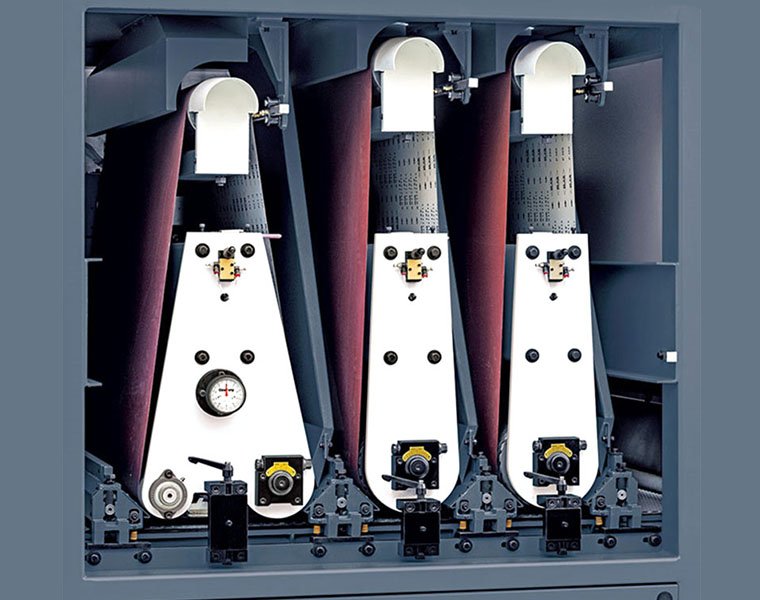

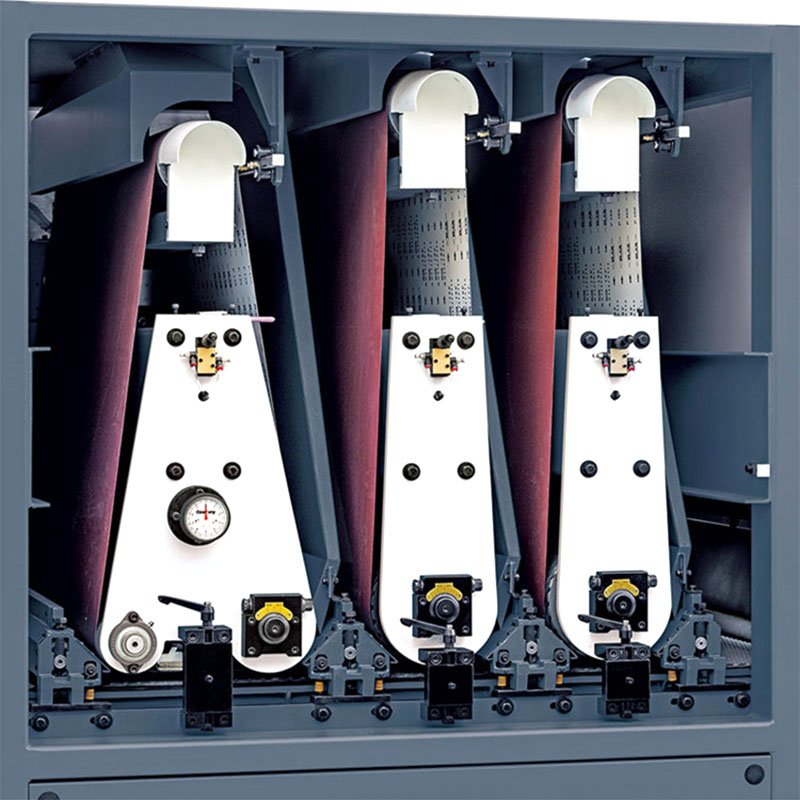

The first working unit on this machine is a steel roller, diameter 240mm; the 2nd working unit is a rubber roller, diameter 240mm and hardness shore 70; the third working unit is a combination of 180mm rubber roller and a longitudinal pad. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness can be made according to customers' requirement.
QSG series sanding machines are Giantway company applied our years experience integrated european machine advantage to make. This series machines freaturing higher precision, longer life, energy-saving and more, are ideal equipment for sanding job.
MODEL SPC ITEM | QSG1100R-R-RPA |
Working width | 40-1100mm |
Working thichness | 3-150mm |
Minimum working length | 460mm |
Feeding speed | 0-19m/min ( inverter) |
First belt speed | 22m/s |
Second belt speed | 22m/s |
Third belt speed | 16m/s |
Sanding belt size | 1130*2620mm |
Conveyor size | 1110*4700mm |
Total power | 60.195kw |
First belt motor | 22kw |
Second belt motor | 18.5kw |
Third belt motor | 15kw |
Lift & decline motor | 0.37kw |
Brush motor | 0.25kw |
Feeding motor | 4kw( inverter) |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 1.5CBM/min |
Overall dimension | 2650*1750*2300mm |
Weight | 4800kgs |
