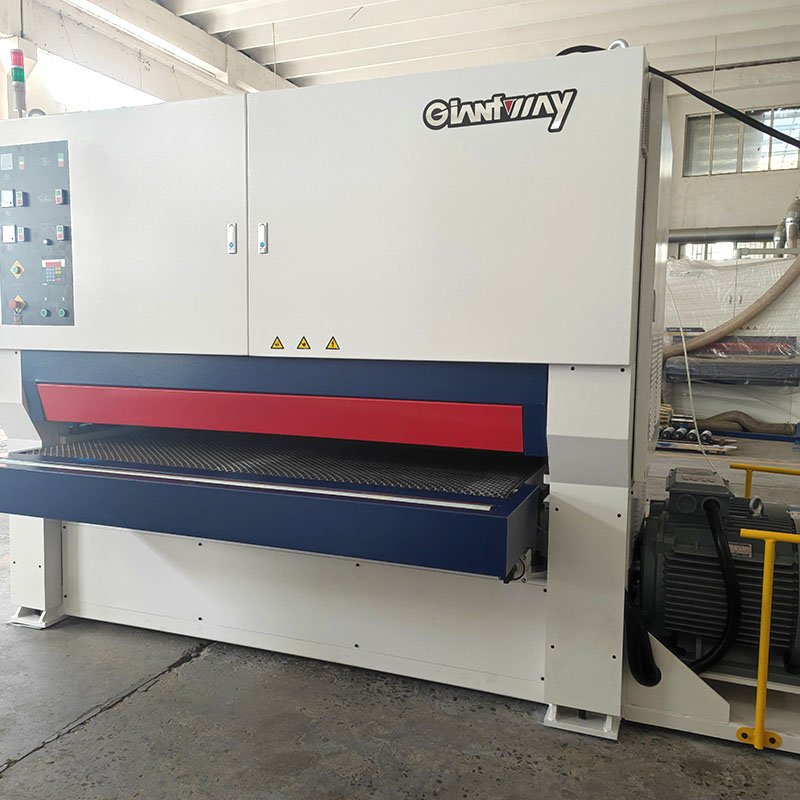

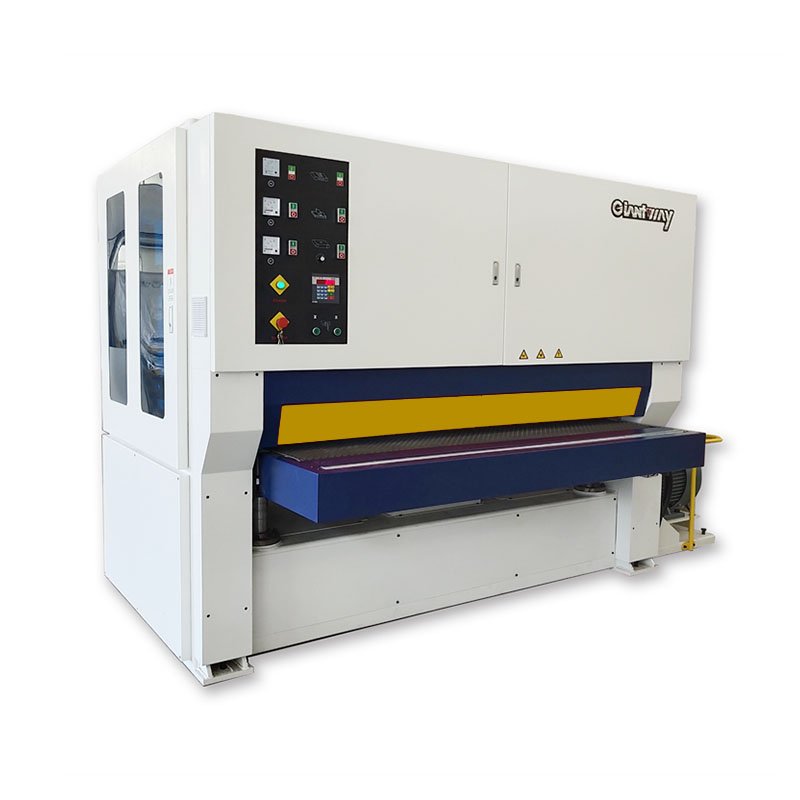

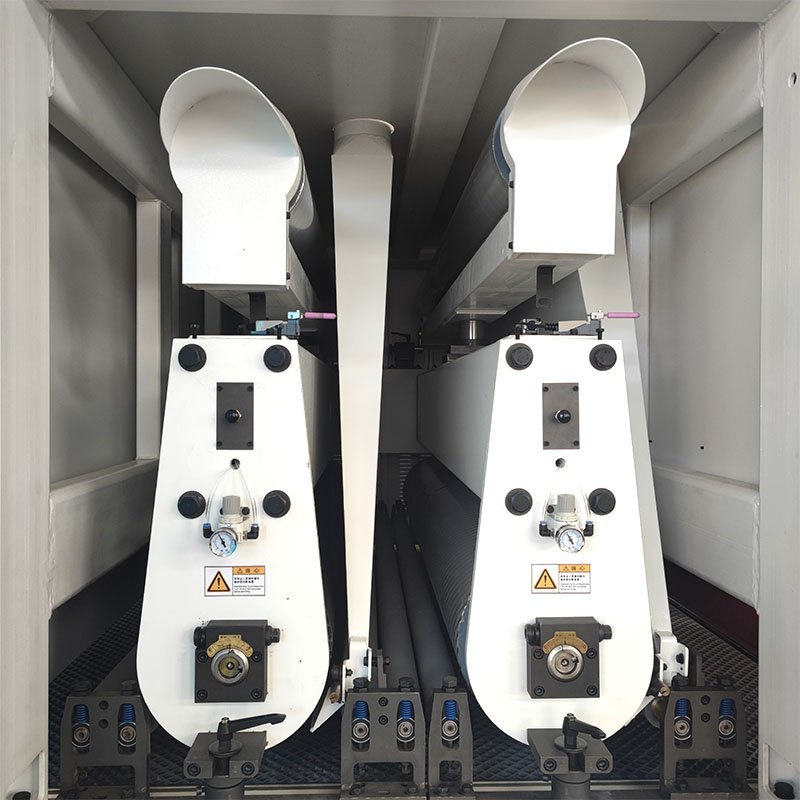

This wide belt sander SGJ2000R-RA has 25 years production experience, it is our most mature product. We install two working units on this machine. The first working unit is a steel roller, diameter 320mm; the second working unit is a combination of roller (diameter 320mm) and pad.This machine is designed for calibrating and fine sanding on solid wood, glued panels, mdf, plywood and other wooden furniture parts.
The SGJ2000R-RA is a standard type wide belt sanding machine designed for calibrating and fine sanding of solid wood panels, plywood, MDF, and glued boards. It offers stable operation and consistent sanding quality for furniture manufacturing.
This model features a fixed working table with a constant pass line, making it suitable for integration into production lines. The sanding unit moves up and down precisely to ensure accurate material removal and uniform panel thickness.
Equipped with a steel sanding roller and advanced belt oscillation system, the SGJ2000R-RA delivers uniform sanding results while minimizing sanding marks and surface imperfections.
This wide belt sanding machine is ideal for furniture factories processing panels for doors, cabinets, and other wooden components where stable sanding performance and cost efficiency are required.
MODEL SPC ITEM | SGJ2000R-RA |
Working width | 40-2000mm |
Working thichness | 2.5-150mm |
Contact roller diameter | 320mm |
Calibrating roller diameter | 320mm |
Feeding speed | 0-19m/min |
First belt speed | 23m/s |
Second belt speed | 23m/s |
Sanding belt size | 2030*2500mm |
Total power | 104.8kw |
First belt motor | 55kw |
Second belt motor | 45kw |
Motors position | Outside |
Feeding motor | 4kw（inverter） |
Lift & decline motor | a0.55kw |
Brush motor | 0.25kw |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 1 CBM/min |
Overall dimension | 2300*3470*2500mm |
Weight | 8900kgs |
