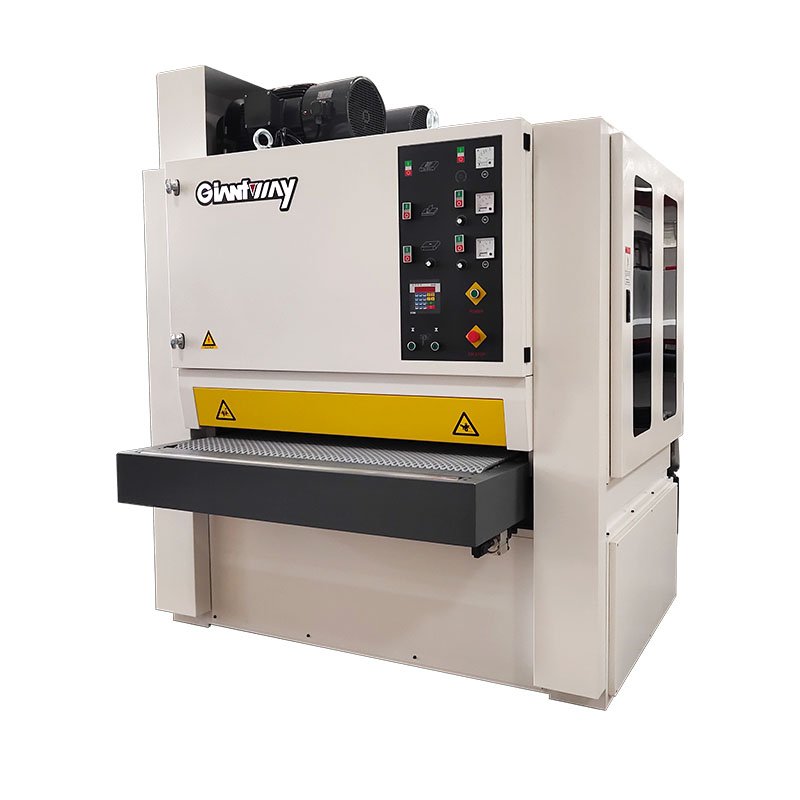

This lacquer sander is special designed for sealer sanding and base lacquer sanding. The machine is also with fixed conveyor table and moverable working units, that is suitable to be put in production line.

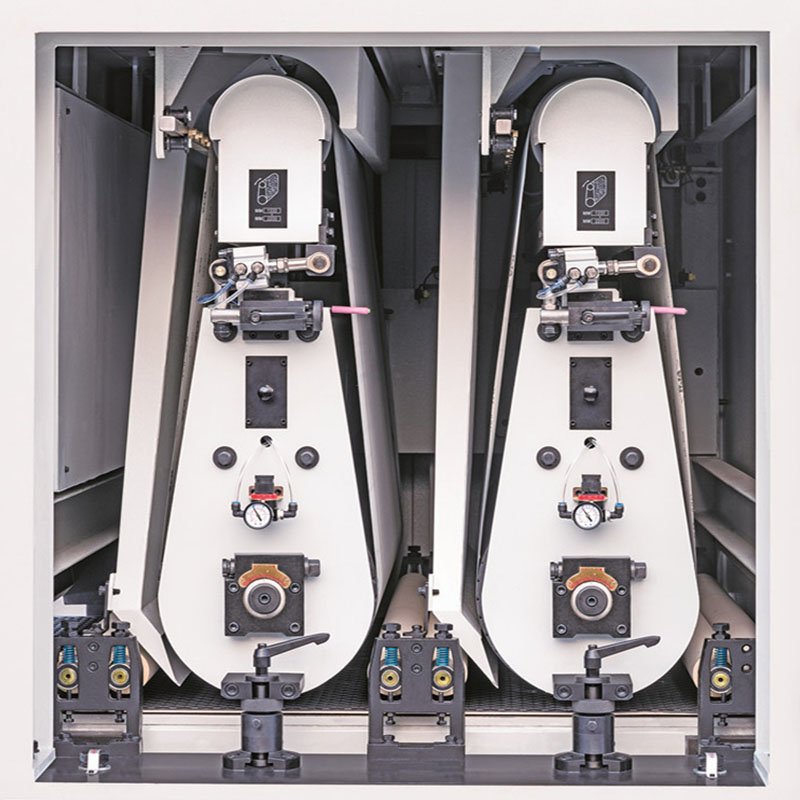

This first working unit on this machine is a soft rubber roller, roller hardness is shore 26, roller diameter is 320mm; the 2nd working unit is a soft rubber roller too, roller hardness is shore 22, roller diameter is 320mm. Both working heads equip 1330*2200mm abrasive belt.
The SGJ1300R-RA is a good machine with competitive price, is a good choice for lacquer sanding in coating line.
MODEL SPC ITEM | SGJ1300R-RA |
Working width | 40-1300mm |
Working height | 850mm |
Working thickness | 2.5-150mm |
Feeding speed | 0-19m/min |
First roller diameter | 320mm |
polishing roller diameter | 320mm |
First belt speed | Max 18m/s (with inverter) |
Second belt speed | Max 18m/s (with inverter) |
Sanding belt size | 1330*2200mm |
Total power | 33.48kw |
First belt motor | 15kw |
Polishing roller motor | 15kw |
Feeding motor | 3 kw |
Lift & decline motor | 0.18kw |
Brush motor | 0.25kw |
Air jet motor | 0.025kw *2 |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | 0.5 CBM/min |
Overall dimension | 2100*2040*2320mm |
Weight | 3900kgs |
