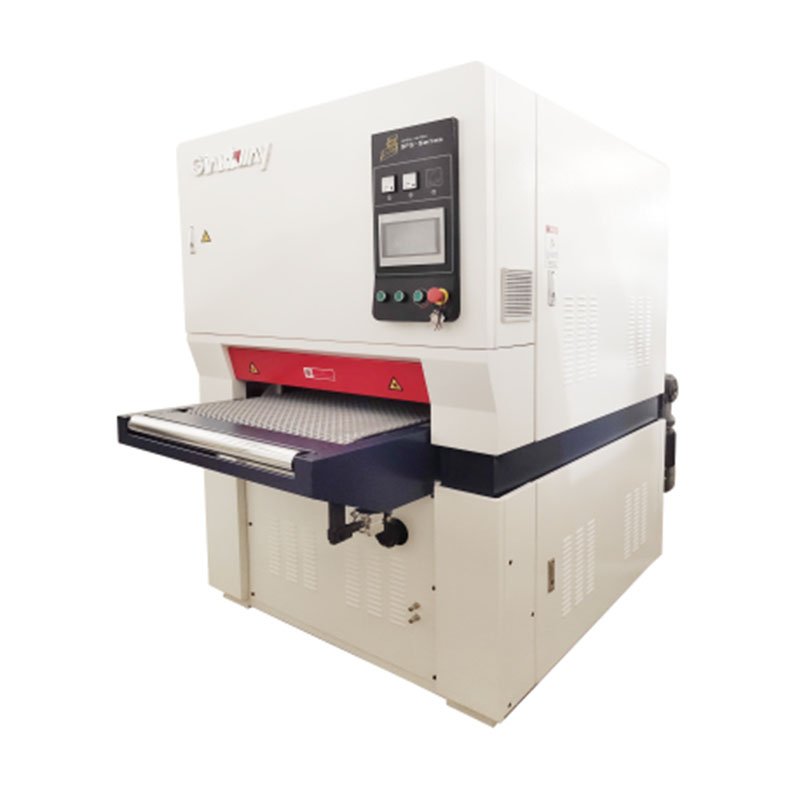

SFG series wide belt sander is our fixed table (constant pass line ) top sander, usually used in line together with bottom sander. This machine is a necessary equipment for high productivity facotries, such as wood doors manufacturers, cabinets makers and so on.

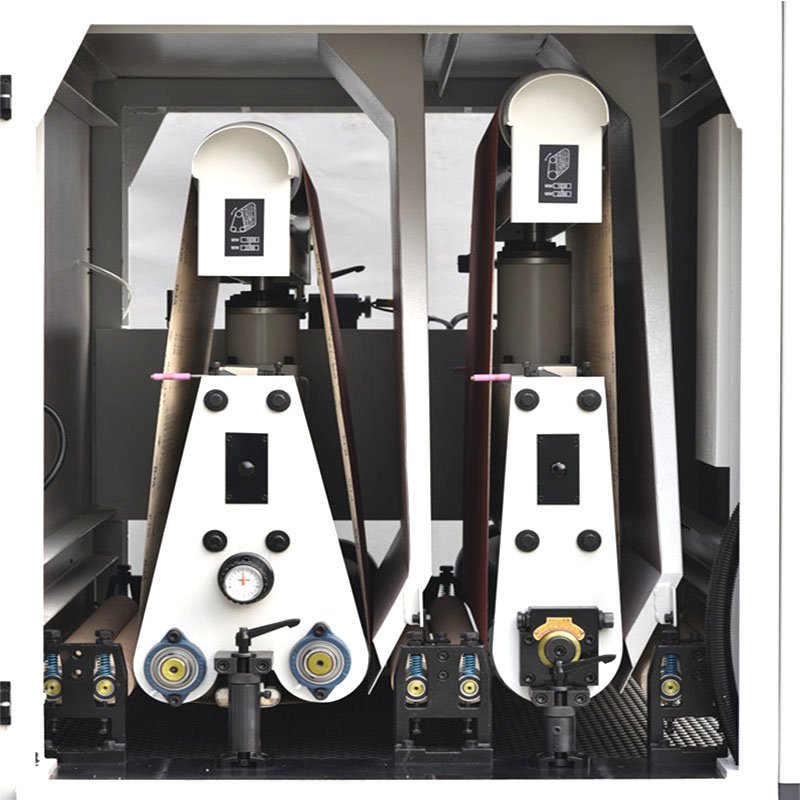

On this machine SFG700R-RPA, the 1st working unit is a steel roller; the 2nd working unit is a rubber roller combined with a longitudinal pressure beam. This configuration is good for calibrating, also is well for fine sanding. The rubber roller hardness can be made according to customers' requirement.
This machine main advantage is high cost performance ( good quality and affordable price), the machine is easy to adjust and maintain, our purpose is save you time and labor cost.
MODEL SPC ITEM | SFG700R-RPA |
Working width | 40-700mm |
Working thickness | 2.5-140mm |
Working table height | 900mm |
Minimum working length | 390mm |
First roller diameter (steel) | 190mm |
Second roller diameter (rubber) | 115mm/55° |
Abrasive belt grit | 80#, 180# |
Feeding speed | 0-19m/min |
First belt speed | 21.5m/s |
Second belt speed | 14m/s |
Sanding belt size | 730*1900mm |
Feeding belt size | 705*3930mm |
Total power | 24.93kw |
First belt motor | 15kw-2p |
Second belt motor | 7.5kw-2p |
Feeding motor | 1.5 kw(inverter) |
Lift & decline motor | 0.75kw - 4P |
Brush motor | 0.18kw-4P |
Working pressure | 0.4-0.8Mpa |
Compressed air consumption | Max 1 CBM/min |
Collecting system air speed | 30m/s |
Outlets diameter | 100mm x 5pcs |
Overall dimension | 2130*1270*1900mm |
Weight | About 2236kgs |
